These dual 4-bit D-type latches feature 3-state outputs designed specifically for bus driving. These devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
The dual 4-bit latches are transparent D-type latches. While the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs in true form, according to the function table. When LE is low, the outputs are latched. When the clear (
) input goes low, the Q outputs go low independently of LE. The outputs are in the high-impedance state when the output-enable (
) input is at a high logic level.
The SN54ALS873B and SN54AS873A are characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALS873B and SN74AS873A are characterized for operation from 0°C to 70°C.
| Number of channels | 8 |
| Technology family | ALS |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Input type | Bipolar |
| Output type | 3-State |
| Clock frequency (max) (MHz) | 75 |
| IOL (max) (mA) | 24 |
| IOH (max) (mA) | -2.6 |
| Supply current (max) (µA) | 32000 |
| Features | Flow-through pinout, High speed (tpd 10-50ns) |
| Operating temperature range (°C) | 0 to 70 |
| Rating | Catalog |

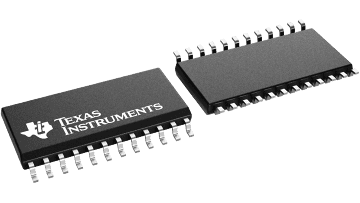

| SOIC (DW) | 24 | 159.65 mm² 15.5 x 10.3 |
