These 10-bit buffers and bus drivers are specifically designed to drive the capacitive input characteristics of MOS DRAMs. They provide high-performance bus interface for wide data paths or buses carrying parity.
The 3-state control gate is a 2-input AND gate with active-low inputs so if either output-enable (
or
) input is high, all ten outputs are in the high-impedance state. The outputs are also in the high-impedance state during power-up and power-down conditions. The outputs remain in the high-impedance state while the device is powered down.
The SN54BCT2827C is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74BCT2827C is characterized for operation from 0°C to 70°C.
| Technology family | BCT |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 10 |
| IOL (max) (mA) | 12 |
| Supply current (max) (µA) | 40000 |
| IOH (max) (mA) | -1 |
| Input type | Bipolar |
| Output type | 3-State |
| Features | Damping resistors, Over-voltage tolerant inputs, Power up 3-state, Very high speed (tpd 5-10ns) |
| Rating | Catalog |
| Operating temperature range (°C) | 0 to 70 |

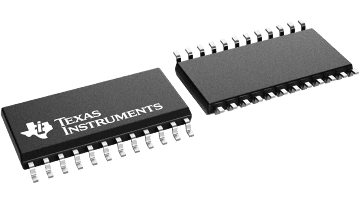

| SOIC (DW) | 24 | 159.65 mm² 15.5 x 10.3 |
