This 9-bit transceiver is designed for asynchronous two-way communication between data buses. The control-function implementation allows for maximum flexibility in timing.
This device allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic levels at the output-enable (
,
,
, and
) inputs.
The SN74ALS29863 is characterized for operation from 0°C to 70°C.
| Supply voltage (min) (V) | 4.75 |
| Supply voltage (max) (V) | 5.25 |
| Number of channels | 9 |
| IOL (max) (mA) | 48 |
| IOH (max) (mA) | -24 |
| Input type | TTL |
| Output type | TTL |
| Features | High speed (tpd 10-50ns), Over-voltage tolerant inputs |
| Technology family | ALS |
| Rating | Catalog |
| Operating temperature range (°C) | 0 to 70 |

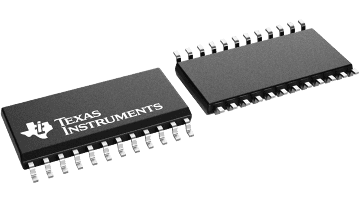

| SOIC (DW) | 24 | 159.65 mm² 15.5 x 10.3 |
