The TXS03121 is a comparator designed for battery monitoring applications. It can be operated with a voltage of 2.5 V to 5.5 V. The reference voltage is applied to the –IN terminal, whereas the voltage to be monitored is connected to +IN. When the voltage at +IN is greater than the voltage at –IN, the output FET is turned On. When the voltage at +IN is less than the voltage at –IN, the output FET is turned Off. The source (S) of the output FET can be connected to 1.1 V to 3.6 V, which allows the output signal to be level translated to another voltage value. The voltage at V+ must be greater than or equal to the voltage at S. The voltage at S must be greater than or equal to the voltage at D (V+ ≥ VS ≥ VD).
| Number of channels | 1 |
| Output type | Open-collector, Open-drain |
| Propagation delay time (µs) | 0.7 |
| Vs (max) (V) | 5.5 |
| Vs (min) (V) | 2.5 |
| Vos (offset voltage at 25°C) (max) (mV) | 10 |
| Iq per channel (typ) (mA) | 0.005 |
| Input bias current (±) (max) (nA) | 500 |
| Rail-to-rail | In to V- |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| VICR (max) (V) | 5.5 |
| VICR (min) (V) | 0.8 |

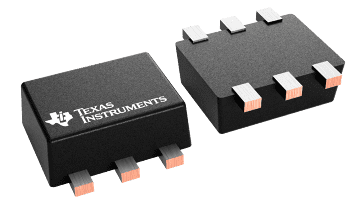

| SOT-5X3 (DRL) | 6 | 2.56 mm² 1.6 x 1.6 |
