The 'ABT16470 are 16-bit registered transceivers that contain two sets of D-type flip-flops for temporary storage of data flowing in either direction. The 'ABT16470 can be used as two 8-bit transceivers or one 16-bit transceiver. Separate clock (CLKAB or CLKBA) and output-enable (OEAB or OEBA) inputs are provided for each register to permit independent control in either direction of data flow.
To avoid false clocking of the flip-flops, clock enable (CLKEN) should not be switched from high to low while CLK is high.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
The SN54ABT16470 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ABT16470 is characterized for operation from -40°C to 85°C.
Widebus and EPIC-IIB are trademarks of Texas Instruments Incorporated.
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 16 |
| IOL (max) (mA) | 64 |
| IOH (max) (mA) | -32 |
| Input type | TTL |
| Output type | TTL |
| Features | Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
| Technology family | ABT |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

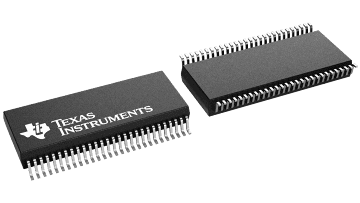

| SSOP (DL) | 56 | 190.647 mm² 18.42 x 10.35 |
| TSSOP (DGG) | 56 | 113.4 mm² 14 x 8.1 |
