The 'ACT16827 are noninverting 20-bit buffers composed of two 10-bit sections with separate output-enable signals. For either 10-bit buffer section, the two output-enable (1
and 1
or 2 and 2) inputs must both be low for the corresponding Y outputs to be active. If either output-enable input is high, the outputs of that 10-bit buffer section are in the high-impedance state.

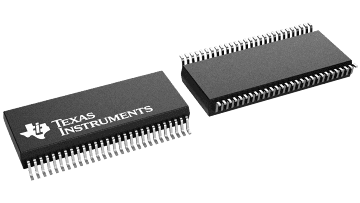

The 74ACT16827 is packaged in TI's shrink small-outline package, which provides twice the I/O pin count and functionality of standard small-outline packages in the same printed-circuit-board area.
The 54ACT16827 is characterized for operation over the full military temperature range of -55°C to 125°C. The 74ACT16827 is characterized for operation from -40°C to 85°C.
EPIC and Widebus are trademarks of Texas Instruments Incorporated.
| Technology family | ACT |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 20 |
| IOL (max) (mA) | 24 |
| Supply current (max) (µA) | 80 |
| IOH (max) (mA) | -24 |
| Input type | TTL-Compatible CMOS |
| Output type | 3-State |
| Features | Balanced outputs, Input clamp diode, Very high speed (tpd 5-10ns) |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| SSOP (DL) | 56 | 190.647 mm² 18.42 x 10.35 |
