These positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type flip-flop logic. All have a direct-clear (CLR) input. The ’ALS175 and ’AS175B feature complementary outputs from each flip-flop.
Information at the data (D) inputs meeting the setup-time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When the clock (CLK) input is at either the high or low level, the D-input signal has no effect at the output.
These circuits are fully compatible for use with most TTL circuits.
| Number of channels | 6 |
| Technology family | ALS |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Input type | Bipolar |
| Output type | Push-Pull |
| Clock frequency (max) (MHz) | 75 |
| IOL (max) (mA) | 8 |
| IOH (max) (mA) | -0.4 |
| Supply current (max) (µA) | 19000 |
| Features | High speed (tpd 10-50ns) |
| Operating temperature range (°C) | -55 to 125 |
| Rating | Military |
| CDIP (J) | 16 | 135.3552 mm² 19.56 x 6.92 |

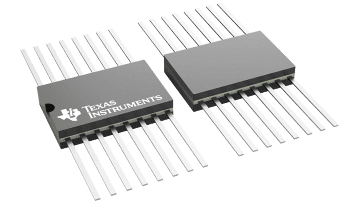

| CFP (W) | 16 | 69.319 mm² 10.3 x 6.73 |
| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
