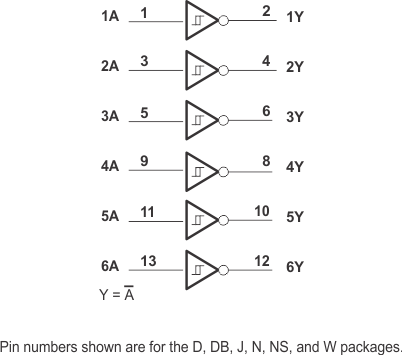

Each circuit in SNx414 and SNx4LS14 functions as an inverter. However, because of the Schmitt-Trigger action, they have different input threshold levels for positive-going (VT+) and negative-going (VT–) signals.
These circuits are temperature compensated and can be triggered from the slowest of input ramps and still give clean, jitter-free output signals.
| Technology family | TTL |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 6 |
| IOL (max) (mA) | 16 |
| IOH (max) (mA) | -0.8 |
| Supply current (max) (µA) | 60000 |
| Input type | Schmitt-Trigger |
| Output type | Push-Pull |
| Features | High speed (tpd 10-50ns) |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |
| CDIP (J) | 14 | 130.4652 mm² 19.56 x 6.67 |
| CFP (W) | 14 | 58.023 mm² 9.21 x 6.3 |
