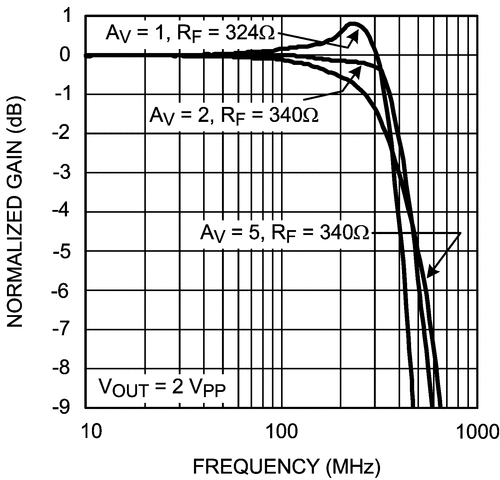

The LMH6733 is a triple, wideband, operational amplifier designed specifically for use where high speed and low power are required. Input voltage range and output voltage swing are optimized for operation on supplies as low as 3V and up to ±6V. Benefiting from TI’s current feedback architecture, the LMH6733 offers a gain range of ±1 to ±10 while providing stable operation without external compensation, even at unity gain. These amplifiers provide 650 MHz small signal bandwidth at a gain of 2 V/V , a low 2.1 nV/√Hz input referred noise and only consume 5.5 mA (per amplifier) from a single 5V supply.
The LMH6733 is offered in a 16-Pin SSOP package with flow through pinout for ease of layout and is also pin compatible with the LMH6738. Each amplifier has an individual shutdown pin.
All trademarks are the property of their respective owners.
| Architecture | Current FB |
| Number of channels | 3 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 3 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 12 |
| GBW (typ) (MHz) | 1000 |
| BW at Acl (MHz) | 1000 |
| Acl, min spec gain (V/V) | 1 |
| Slew rate (typ) (V/µs) | 3750 |
| Vn at flatband (typ) (nV√Hz) | 2.1 |
| Vn at 1 kHz (typ) (nV√Hz) | 2.1 |
| Iq per channel (typ) (mA) | 6.5 |
| Vos (offset voltage at 25°C) (max) (mV) | 2.2 |
| Rail-to-rail | No |
| Features | Shutdown |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| CMRR (typ) (dB) | 55 |
| Input bias current (max) (pA) | 19000000 |
| Offset drift (typ) (µV/°C) | 30 |
| Iout (typ) (mA) | 80 |
| 2nd harmonic (dBc) | 72 |
| 3rd harmonic (dBc) | 63 |
| Frequency of harmonic distortion measurement (MHz) | 10 |
| SSOP (DBQ) | 16 | 29.4 mm² 4.9 x 6 |
