The TLV7211 and TLV7211A are micropower CMOS comparators available in the space-saving SOT-23-5 package. This makes the comparators ideal for space- and weight-critical designs. The TLV7211A features an input offset voltage of 5 mV, and the TLV7211 features an input offset voltage of 15 mV.
The main benefits of the SOT-23-5 package are most apparent in small portable electronic devices, such as mobile phones, pagers, notebook computers, personal digital assistants, and PCMCIA cards. The rail-to-rail input voltage makes the TLV7211 or TLV7211A a good choice for sensor interfacing, such as light detector circuits, optical and magnetic sensors, and alarm and status circuits.

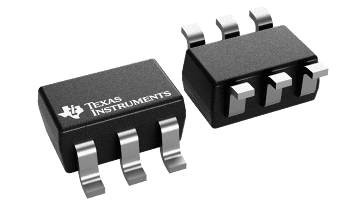

The SOT-23-5 package's small size allows it to fit into tight spaces on PC boards.
| Number of channels | 1 |
| Output type | Push-Pull |
| Propagation delay time (µs) | 4 |
| Vs (max) (V) | 15 |
| Vs (min) (V) | 2.7 |
| Vos (offset voltage at 25°C) (max) (mV) | 5 |
| Iq per channel (typ) (mA) | 0.007 |
| Input bias current (±) (max) (nA) | 0.00004 |
| Rail-to-rail | In |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Features | Small Size |
| VICR (max) (V) | 15.2 |
| VICR (min) (V) | 0 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
| SOT-SC70 (DCK) | 6 | 4.2 mm² 2 x 2.1 |
