• Low Supply Voltage Range: 1.8 V to 3.6 V
• Ultra-Low Power Consumption
  • Active Mode: 220 µA at 1 MHz, 2.2 V
  • Standby Mode: 0.5 µA
  • Off Mode (RAM Retention): 0.1 µA
• Five Power-Saving Modes
• Ultra-Fast Wake-Up From Standby Mode in
  Less Than 1 µs
• 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
• Basic Clock Module Configurations
  • Internal Frequencies up to 16 MHz With Four
    Calibrated Frequencies
  • Internal Very-Low-Power Low-Frequency (LF) Oscillator
  • 32-kHz Crystal
  • External Digital Clock Source
• One 16-Bit Timer_A With Three Capture/Compare Registers
• Up to 16 Capacitive-Touch Enabled I/O Pins
• Universal Serial Interface (USI) Supporting SPI and I2C
• 10-Bit 200-ksps Analog-to-Digital (A/D) Converter With Internal
  Reference, Sample-and-Hold, and Autoscan (MSP430G2x52 Only)
• On-Chip Comparator for Analog
• Brownout Detector
• Serial Onboard Programming, No External Programming Voltage
  Needed, Programmable Code Protection by Security Fuse
• On-Chip Emulation Logic With Spy-Bi-Wire Interface
• Package Options
  • TSSOP: 14 Pin, 20 Pin
  • PDIP: 20 Pin

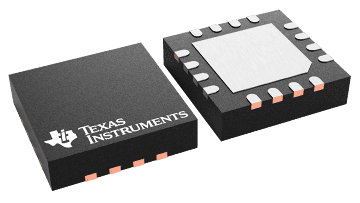

  • QFN: 16 Pin
• For Complete Module Descriptions, See the MSP430x2xx Family User’s Guide (SLAU144)
