AM3703

正在供货

Sitara 处理器: Arm Cortex-A8、摄像机

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The AM37x generation (AM3715/AM3703) of Sitara™ high-performance microprocessors is based on the enhanced Cortex™-A8 device architecture and is integrated on TI's advanced 45-nm process technology. This architecture is designed to provide best in class ARM and graphics performance while delivering low power consumption.

The device can support numerous high-level operating systems and real-time operating system solutions including Linux, Android and Windows Embedded CE which are available free of charge directly from TI. Additionally, the device is fully backward compatible with previous Cortex-A8 Sitara microprocessors and OMAP™ processors.

The AM3715/AM3703 microprocessor data manual presents the electrical and mechanical specifications for the AM3715/AM3703 microprocessor.

The information contained in this data manual applies to both the commercial and extended temperature versions of the AM3715/03 Microprocessor unless otherwise indicated. It consists of the following sections:

A description of the AM3715/03 terminals: assignment, electrical characteristics, multiplexing, and functional description
A presentation of the electrical characteristics requirements: power domains, operating conditions, power consumption, and dc characteristics
The clock specifications: input and output clocks, DPLL and DLL
A description of thermal characteristics, device nomenclature, and mechanical data about the available packaging

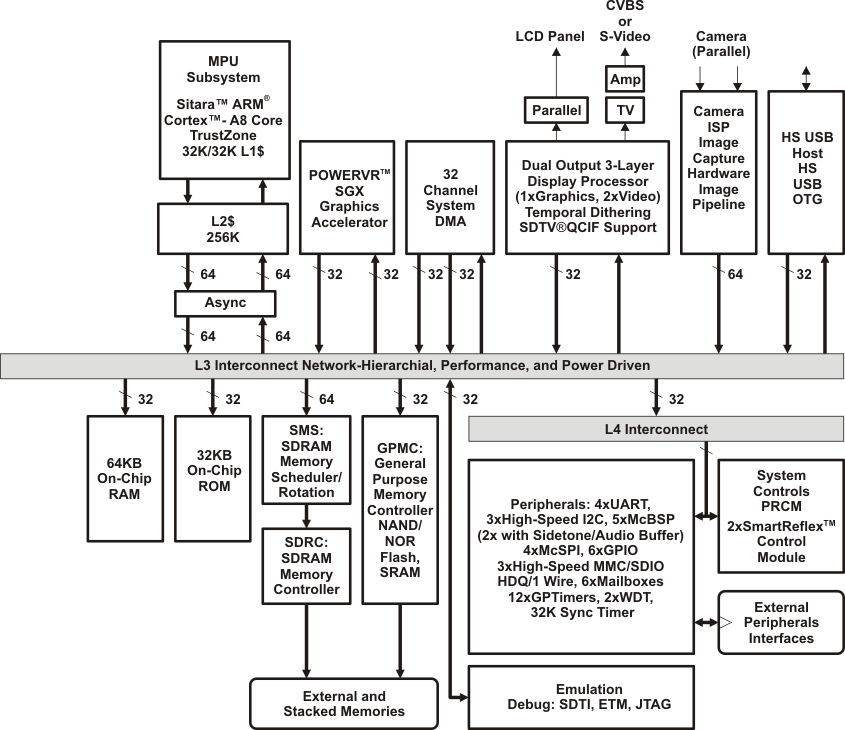

AM3715, AM3703 Sitara ARM Microprocessors:
- Compatible to OMAP™ 3 Architecture
- MPU Subsystem
  - Up to 1-GHz Sitara™ ARM® Cortex™-A8 Core Also supports 300, 600, and 800-MHz operation
  - NEON SIMD Coprocessor
- POWERVR SGX™ Graphics Accelerator (AM3715 only)
  - Tile Based Architecture Delivering up to 20 MPoly/sec
  - Universal Scalable Shader Engine: Multi-threaded Engine Incorporating Pixel and Vertex Shader Functionality
  - Industry Standard API Support: OpenGLES 1.1 and 2.0, OpenVG1.0
  - Fine Grained Task Switching, Load Balancing, and Power Management
  - Programmable High Quality Image Anti-Aliasing
External Memory Interfaces:
- SDRAM Controller (SDRC)
  - 16, 32-bit Memory Controller With 1G-Byte Total Address Space
  - Interfaces to Low-Power SDRAM
  - SDRAM Memory Scheduler (SMS) and Rotation Engine
- General Purpose Memory Controller (GPMC)
  - 16-bit Wide Multiplexed Address/Data Bus
  - Up to 8 Chip Select Pins With 128M-Byte Address Space per Chip Select Pin
  - Glueless Interface to NOR Flash, NAND Flash (With ECC Hamming Code Calculation), SRAM and Pseudo-SRAM
  - Flexible Asynchronous Protocol Control for Interface to Custom Logic (FPGA, CPLD, ASICs, etc.)
  - Nonmultiplexed Address/Data Mode (Limited 2K-Byte Address Space)

POWERVR SGX is a trademark of Imagination Technologies Ltd.

OMAP is a trademark of Texas Instruments.

All other trademarks are the property of their respective owners.

Arm CPU	1 Arm Cortex-A8
Arm (max) (MHz)	1000
CPU	32-bit
Display type	1 LCD
Protocols	Ethernet
Hardware accelerators	Image/Video Extension
Operating system	Linux, RTOS
Security	Cryptography
Rating	Catalog
Operating temperature range (°C)	-40 to 105

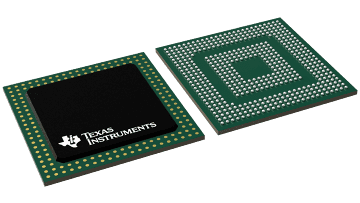

FCCSP (CBC)	515	196 mm² 14 x 14

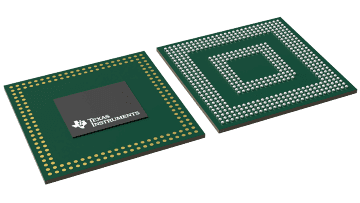

FCCSP (CBP)	515	144 mm² 12 x 12

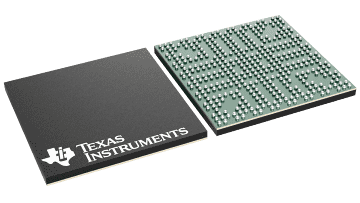

FCCSP (CUS)	423	256 mm² 16 x 16
