LMV796

LMV796

正在供货

单路、5V、17MHz、低噪声 (5.8nV/√Hz) 运算放大器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

The LMV796/LMV796Q (Single) and the LMV797 (Dual) low noise, CMOS input operational amplifiers offer a low input voltage noise density of 5.8 nV/√Hz while consuming only 1.15 mA (LMV796/LMV796Q) of quiescent current. The LMV796/LMV796Q and LMV797 are unity gain stable op amps and have gain bandwidth of 17 MHz. The LMV796/LMV796Q/ LMV797 have a supply voltage range of 1.8V to 5.5V and can operate from a single supply. The LMV796/LMV796Q/LMV797 each feature a rail-to-rail output stage capable of driving a 600Ω load and sourcing as much as 60 mA of current.

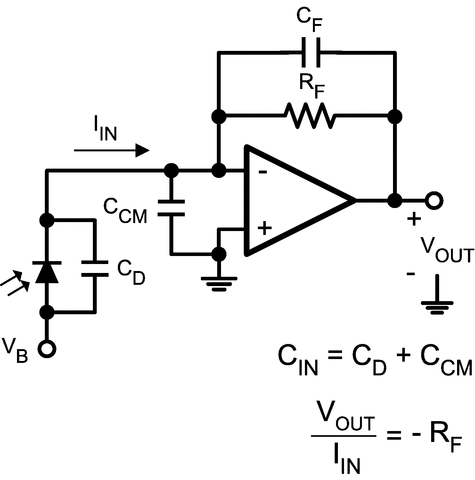

The LMV796/LMV796Q family provides optimal performance in low voltage and low noise systems. A CMOS input stage, with typical input bias currents in the range of a few femtoAmperes, and an input common mode voltage range, which includes ground, make the LMV796/LMV796Q and the LMV797 ideal for low power sensor applications.

The LMV796/LMV796Q/LMV797 are manufactured using TI’s advanced VIP50 process. The LMV796/ LMV796Q are offered in 5–pin SOT-23 package. The LMV797 is offered in 8–pin VSSOP package.

    (Typical 5V Supply, Unless Otherwise Noted)

  • Input Referred Voltage Noise 5.8 nV/√Hz
  • Input Bias Current 100 fA
  • Unity Gain Bandwidth 17 MHz

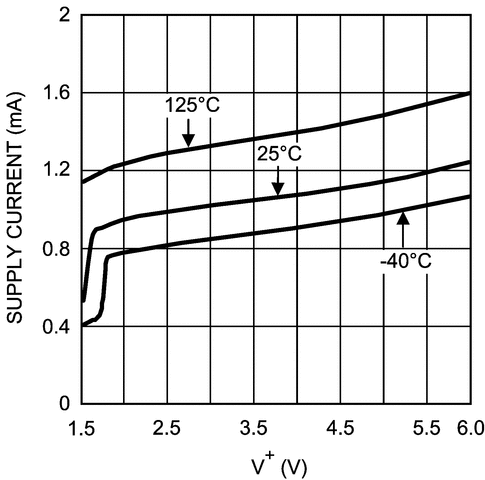

  • Supply Current per Channel
    • LMV796/LMV796Q 1.15 mA
    • LMV797 1.30 mA
  • Rail-to-Rail Output Swing
    • @ 10 kΩ Load 25 mV from Rail
    • @ 2 kΩ Load 45 mV from Rail
  • Guaranteed 2.5V and 5.0V Performance
  • Total Harmonic Distortion 0.01% @ 1kHz, 600Ω
  • Temperature Range −40°C to 125°C
  • LMV796Q is an Automotive Grade Product that is AEC-Q100 Grade 1 Qualified and is Manufactured on an Automotive Grade Flow.

All trademarks are the property of their respective owners.

Number of channels1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)1.8
Rail-to-railIn to V-, Out
GBW (typ) (MHz)17
Slew rate (typ) (V/µs)9.5
Vos (offset voltage at 25°C) (max) (mV)1.35
Iq per channel (typ) (mA)1.15
Vn at 1 kHz (typ) (nV√Hz)5.8
RatingCatalog
Operating temperature range (°C)-40 to 125
Offset drift (typ) (µV/°C)1
Input bias current (max) (pA)1
CMRR (typ) (dB)100
Iout (typ) (A)0.021
ArchitectureCMOS
Input common mode headroom (to negative supply) (typ) (V)-0.3
Input common mode headroom (to positive supply) (typ) (V)-1
Output swing headroom (to negative supply) (typ) (V)0.02
Output swing headroom (to positive supply) (typ) (V)-0.025
SOT-23 (DBV)58.12 mm² 2.9 x 2.8
