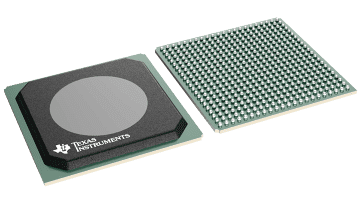

AM3505

正在供货

Sitara 处理器: Arm Cortex-A8、视频前端

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

AM3517/05 is a high-performance ARM Cortex-A8 microprocessor with speeds up to 600 MHz. The device offers 3D graphics acceleration while also supporting numerous peripherals, including DDR2, CAN, EMAC, and USB OTG PHY that are well suited for industrial apllications.

The processor can support other applications, including: Single-board computers Home and industrial automation Human machine Interface

The device supports high-level operating systems (OSs), such as:

Linux^®
Windows^® CE
Android™

The following subsystems are part of the device:

Microprocessor unit (MPU) subsystem based on the ARM Cortex-A8 microprocessor
PowerVR SGX graphics accelerator (AM3517 device only) subsystem for 3D graphics acceleration to support display and gaming effects
Display subsystem with several features for multiple concurrent image manipulation, and a programmable interface supporting a wide variety of displays. The display subsystem also supports NTSC/PAL video out.
High-performance interconnects provide high-bandwidth data transfers for multiple initiators to the internal and external memory controllers and to on-chip peripherals. The device also offers a comprehensive clock-management scheme.

AM3517/05 devices are available in a 491-pin BGA package and a 484-pin PBGA package.

This AM3517/05 data manual presents the electrical and mechanical specifications for the AM3517/05 Sitara processor.

AM3517/05 Sitara Processor:
- MPU Subsystem
  - 600-MHz Sitara ARM Cortex-A8 Core
  - NEON SIMD Coprocessor and Vector
    Floating-Point (FP) Coprocessor
- Memory Interfaces:
  - 166-MHz 16- and 32-Bit mDDR/DDR2
    Interface with 1GB of Total Addressable
    Space
  - Up to 83 MHz General-Purpose Memory
    Interface Supporting 16-Bit-Wide
    Multiplexed Address/DataBus
  - 64KB of SRAM
  - 3 Removable Media Interfaces
    [MMC/SD/SDIO]
- IO Voltage:
  - mDDR/DDR2 IOs: 1.8V
  - Other IOs: 1.8V and 3.3V
- Core Voltage: 1.2V
- Commercial and Extended Temperature Grade
  (operating restrictions apply)
- 16-Bit Video Input Port Capable of
  Capturing HD Video
- HD Resolution Display Subsystem
- Serial Communication
  - High-End CAN Controller
  - 10/100 Mbit Ethernet MAC
  - USB OTG Subsystem with Standard
    DP/DM Interface [HS/FS/LS]
  - Multiport USB Host Subsystem [HS/FS/LS]
    - 12-Pin ULPI or 6-, 4-, or 3-Pin Serial
      Interface
  - Four Master and Slave Multichannel Serial
    Port Interface(McSPI) Ports
  - Five Multichannel Buffered Serial Ports (McBSPs)
    - 512-Byte Transmit and Receive Buffer
      (McBSP1/3/4/5)
    - 5-KB Transmit and Receive Buffer (McBSP2)
    - SIDETONE Core Support (McBSP2 and
      McBSP3 Only)For Filter, Gain, and Mix
      Operations
    - 128-Channel Transmit and Receive Mode
    - Direct Interface to I2S and PCM Device and
      TDM Buses
  - HDQ/1-Wire Interface
  - 4 UARTs (One with Infrared Data Association
    [IrDA] and Consumer Infrared [CIR] Modes)
  - 3 Master and Slave High-Speed Inter-Integrated
    Circuit (I²C) Controllers
  - Twelve 32-bit General-Purpose Timers
  - One 32-bit Watchdog Timer
  - One 32-bit 32-kHz Sync Timer
  - Up to 186 General-Purpose I/O (GPIO) Pins
Display Subsystem
- Parallel Digital Output
- Up to 24-Bit RGB
- Supports Up to 2 LCD Panels
- Support for Remote Frame Buffer Interface (RFBI)
  LCD Panels
- Two 10-Bit Digital-to-Analog Converters (DACs)
  Supporting
  - Composite NTSC/PAL Video
  - Luma/Chroma Separate Video (S-Video)
- Rotation of 90, 180, and 270 Degrees
- Resize Images From 1/4x to 8x
- Color Space Converter
- 8-Bit Alpha Blending
Video Processing Front End (VPFE) 16-Bit Video Input Port
- RAW Data Interface
- 75-MHz Maximum Pixel Clock
- Supports REC656/CCIR656 Standard
- Supports YCbCr422 Format (8-Bit or 16-Bit with Discrete
  Horizontal and Vertical Sync Signals)
- Generates Optical Black Clamping Signals
- Built-in Digital Clamping and Black Level Compensation
- 10-Bit to 8-Bit A-law Compression Hardware
- Supports up to 16K Pixels (Image Size) in Horizontal
  and Vertical Directions
System Direct Memory Access (sDMA) Controller (32 Logical
Channels with Configurable Priority)
Comprehensive Power, Reset, and Clock Management
ARM Cortex-A8 Memory Architecture
- ARMv7 Architecture
- In-Order, Dual-Issue, Superscalar Microprocessor Core
- ARM NEON Multimedia Architecture
- Over 2x Performance of ARMv6 SIMD
- Supports Both Integer and Floating-Point SIMD
- Jazelle RCT Execution Environment Architecture
- Dynamic Branch Prediction with Branch Target Address
  Cache, Global History Buffer and 8-Entry Return Stack
- Embedded Trace Macrocell [ETM] Support for
  Noninvasive Debug
- 16KB of Instruction Cache (4-Way Set-Associative)
- 16KB of Data Cache (4-Way Set-Associative)
- 256KB of L2 Cache
PowerVR SGX Graphics Accelerator (AM3517 Only)
- Tile-Based Architecture Delivering up to 10 MPoly/sec
- Universal Scalable Shader Engine: Multi-threaded Engine
  Incorporating Pixel and Vertex Shader Functionality
- Industry Standard API Support: OpenGLES 1.1 and
  2.0, OpenVG1.0
- Fine-Grained Task Switching, Load Balancing, and
  Power Management
- Programmable, High-Quality Image Anti-Aliasing
Endianess
- ARM Instructions – Little Endian
- ARM Data – Configurable
SDRC Memory Controller
- 16- and 32-Bit Memory Controller with 1GB of
  Total Address Space
- Double Data Rate (DDR2) SDRAM, Mobile Double Data Rate
  (mDDR)SDRAM
- SDRAM Memory Scheduler (SMS) and Rotation Engine
General Purpose Memory Controller (GPMC)
- 16-Bit-Wide Multiplexed Address/Data Bus
- Up to 8 Chip-Select Pins with 128MB of Address
  Space per Chip-Select Pin
- Glueless Interface to NOR Flash, NAND Flash (with ECC
  Hamming Code Calculation), SRAM and Pseudo-SRAM
- Flexible Asynchronous Protocol Control for Interface
  to Custom Logic (FPGA, CPLD, ASICs, and so forth)
- Nonmultiplexed Address/Data Mode (Limited 2-KB
  Address Space)
Test Interfaces
- IEEE-1149.1 (JTAG) Boundary-Scan Compatible
- Embedded Trace Macro Interface (ETM)
65-nm CMOS Technology
Packages:
- 491-Pin BGA (17 x 17, 0.65-mm Pitch)
  [ZCN Suffix]
  with Via Channel Array
  Technology
- 484-Pin PBGA (23 x 23, 1-mm Pitch)
  [ZER Suffix]

Arm CPU	1 Arm Cortex-A8
Arm (max) (MHz)	600
CPU	32-bit
Graphics acceleration	1 3D
Display type	1 LCD
Protocols	Ethernet
Ethernet MAC	1-Port 10/100
Hardware accelerators	Image/Video Extension
Operating system	Linux, RTOS
Security	Cryptography
Rating	Catalog
Operating temperature range (°C)	-40 to 105

BGA (ZER)	484	529 mm² 23 x 23
NFBGA (ZCN)	491	289 mm² 17 x 17
