MSP430G2101

正在供货

具有 1KB 闪存、128B SRAM、计时器的 16MHz MCU

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

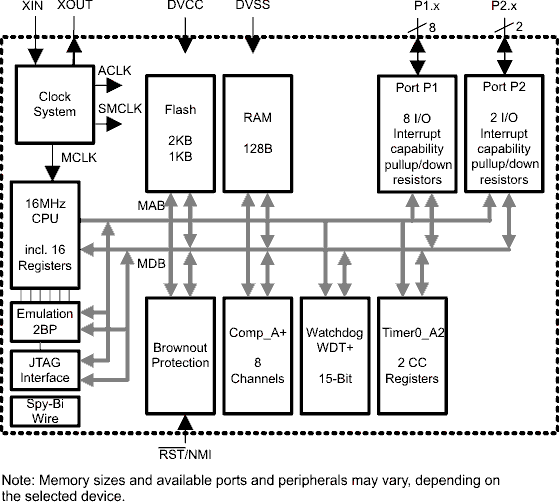

The Texas Instruments MSP430 family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.

The MSP430G2x01 and MSP430G2x11 series is an ultralow-power mixed signal microcontroller with a built-in 16-bit timer and ten I/O pins. The MSP430G2x11 family members have a versatile analog comparator.

Typical applications include low-cost sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system.

Low Supply-Voltage Range: 1.8 V to 3.6 V
Ultralow Power Consumption
- Active Mode: 220 µA at 1 MHz, 2.2 V
- Standby Mode: 0.5 µA
- Off Mode (RAM Retention): 0.1 µA
Five Power-Saving Modes
Ultrafast Wake-Up From Standby Mode in Less Than 1 µs
16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
Basic Clock Module Configurations
- Internal Frequencies up to 16 MHz With One Calibrated Frequency
- Internal Very Low Power Low-Frequency (LF) Oscillator
- 32-kHz Crystal
- External Digital Clock Source
16-Bit Timer_A With Two Capture/Compare Registers
Brownout Detector
On-Chip Comparator for Analog Signal Compare Function or Slope A/D (See )
Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse
On-Chip Emulation Logic With Spy-Bi-Wire Interface
Available in a 14-Pin Plastic Small-Outline Thin Package (TSSOP) (PW), 14-Pin Plastic Dual Inline Package (PDIP) (N), and 16-Pin QFN (RSA)

Frequency (MHz)	16
Nonvolatile memory (kByte)	1
RAM (kByte)	0.125
Number of ADC channels	0
Number of GPIOs	10
Features	Real-time clock, Spy-bi-wire, Watchdog timer
UART	0
USB	No
Number of I2Cs	0
SPI	0
Number of comparator channels	0
Timers - 16-bit	1
Bootloader (BSL)	None
Operating temperature range (°C)	-40 to 85
Rating	Catalog

PDIP (N)	14	181.42 mm² 19.3 x 9.4
TSSOP (PW)	14	32 mm² 5 x 6.4

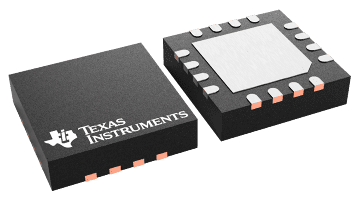

VQFN (RSA)	16	16 mm² 4 x 4
