MSP430F47183

正在供货

具有 3 个 Σ-Δ ADC、160 段 LCD、DMA、116KB 闪存和 8KB RAM 的 16MHz 单相位计量 MCU

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The Texas InstrumentsMSP430 family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portablemeasurement applications. The devices feature a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency.The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6µs.

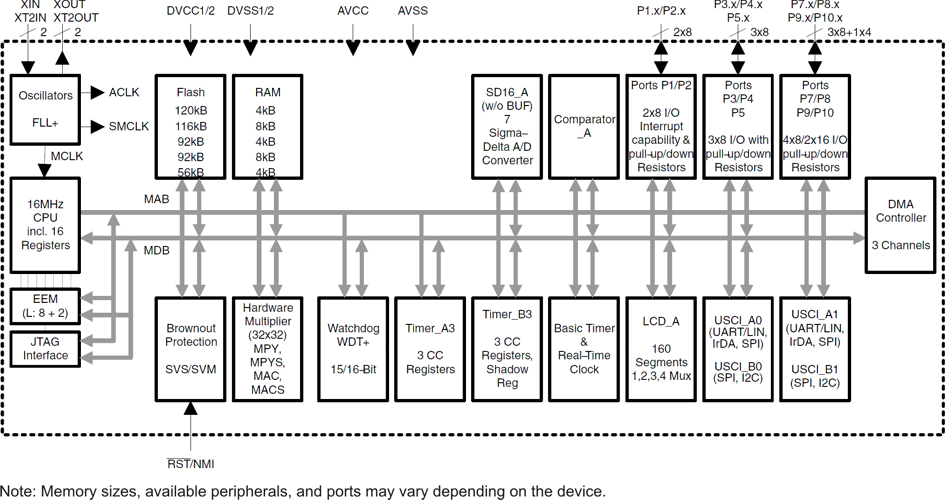

The MSP430F471xx series are microcontroller configurations targeted to single-phase and poly-phase electricity meters with three, six, or seven 16-bit sigma-delta A/D converters. Each channel has a differential input pair and programmable input gain. Also integrated are two 16-bit timers, four universal serial communication interfaces (USCI), DMA, 68 I/O pins, and a liquid crystal driver (LCD) with integrated contrast control.

Low Supply-Voltage Range: 1.8 V to 3.6 V
Ultralow Power Consumption
- Active Mode: 350 µA at 1 MHz, 2.2 V
- Standby Mode: 1.1 µA
- Off Mode (RAM Retention): 0.2 µA
Five Power-Saving Modes
Wake-Up From Standby Mode in Less Than 6 µs
16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
Three-Channel Internal DMA
Three, Six or Seven 16-Bit Sigma-Delta Analog-to-Digital (A/D)
Converters With Differential PGA Inputs
16-Bit Timer_B With Three Capture/Compare-With-Shadow Registers
16-Bit Timer_A With Three Capture/Compare Registers
On-Chip Comparator
Four Universal Serial Communication Interface (USCI) Modules
- USCI_A0 and USCI_A1
  - Enhanced UART Supporting Auto-Baudrate Detection
  - IrDA Encoder and Decoder
  - Synchronous SPI
- USCI_B0 and USCI_B1
  - I2C
  - Synchronous SPI
Integrated LCD Driver With Contrast Control for Up to 160 Segments
Basic Timer With Real-Time Clock Feature
32-Bit Hardware Multiplier
Brownout Detector
Supply Voltage Supervisor/Monitor With Programmable Level Detection
Serial Onboard Programming, No External Programming Voltage Needed
Programmable Code Protection by Security Fuse
Bootstrap Loader
On-Chip Emulation Module
Family Members Include
- MSP430F47163: 92KB Flash, 4KB RAM
  3 Sigma-Delta ADCs
- MSP430F47173: 92KB Flash, 8KB RAM
  3 Sigma-Delta ADCs
- MSP430F47183: 116KB Flash, 8KB RAM
  3 Sigma-Delta ADCs
- MSP430F47193: 120KB Flash, 4KB RAM
  3 Sigma-Delta ADCs
- MSP430F47126: 56KB Flash, 4KB RAM
  6 Sigma-Delta ADCs
- MSP430F47166: 92KB Flash, 4KB RAM
  6 Sigma-Delta ADCs
- MSP430F47176: 92KB Flash, 8KB RAM
  6 Sigma-Delta ADCs
- MSP430F47186: 116KB Flash, 8KB RAM
  6 Sigma-Delta ADCs
- MSP430F47196: 120KB Flash, 4KB RAM
  6 Sigma-Delta ADCs
- MSP430F47127: 56KB Flash, 4KB RAM
  7 Sigma-Delta ADCs
- MSP430F47167: 92KB Flash, 4KB RAM
  7 Sigma-Delta ADCs
- MSP430F47177: 92KB Flash, 8KB RAM
  7 Sigma-Delta ADCs
- MSP430F47187: 116KB Flash, 8KB RAM
  7 Sigma-Delta ADCs
- MSP430F47197: 120KB Flash, 4KB RAM
  7 Sigma-Delta ADCs
Available in a 100-Pin Plastic Quad Flatpack (QFP) Package
For Complete Module Descriptions, See the MSP430x4xx Family User’s Guide,
Literature Number SLAU056
For E-Meter Reference Design and Software, See Implementation of aThree-Phase Electronic Watt-Hour Meter using the MSP430F471xx, Literature Number SLAA409

Frequency (MHz)	16
Nonvolatile memory (kByte)	116
RAM (kByte)	8
ADC type	16-bit Sigma Delta
Number of ADC channels	3
Number of GPIOs	72
Features	Advanced sensing, LCD, Real-time clock
UART	2
USB	No
Number of I2Cs	2
SPI	4
Number of comparator channels	2
Timers - 16-bit	2
Bootloader (BSL)	UART
Operating temperature range (°C)	-40 to 85
Rating	Catalog

LQFP (PZ)

100

256 mm² 16 x 16
