MSP430F4132

正在供货

具有 8KB 闪存、512B SRAM、10 位 ADC、I2C/SPI/UART、比较器和 144 段 LCD 的 8MHz MCU

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The Texas Instruments MSP430 family of ultralow-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes, is optimized to achieve extended battery life in portablemeasurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generator that contribute to maximum code efficiency.The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 µs.

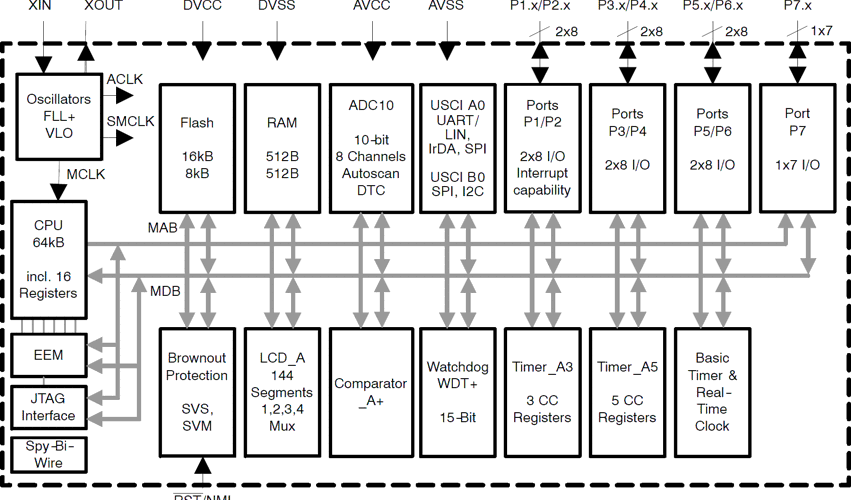

TheMSP430F41x2 is a microcontroller configurationwith two 16-bit timers, a basic timerwith a real-time clock, a 10-bit A/D converter, a versatile analog comparator, two universal serial communication interfaces, up to 48 I/O pins, and a liquid crystal display driver.

Typical applications for this device include analog and digital sensor systems, remote controls, thermostats, digital timers, hand-held meters, etc.

Low Supply-Voltage Range, 1.8 V to 3.6 V
Ultralow Power Consumption
Active Mode: 220 µA at 1 MHz, 2.2 V
Standby Mode: 0.9 µA
Off Mode (RAM Retention): 0.1 µA
Five Power-Saving Modes
Wake-Up From Standby Mode in Less Than 6 µs
- Internal Very Low Power, Low-Frequency Oscillator
16-Bit RISC Architecture, 125-ns Instruction Cycle Time
16-Bit Timer_A With Three Capture/Compare Registers
16-Bit Timer_A With Five Capture/Compare Registers
Two Universal Serial Communication Interfaces (USCIs)
- USCI_A0
  - Enhanced UART Supporting Auto-Baudrate Detection
  - IrDA Encoder and Decoder
  - Synchronous SPI
- USCI_B0
  - I2C
  - Synchronous SPI
Supply Voltage Supervisor/Monitor With Programmable Level Detection
Integrated LCD Driver With Contrast Control for Up to 144 Segments
Basic Timer With Real Time Clock Feature
Brownout detector
On-Chip Comparator for Analog Signal Compare Function or Slope A/D
10-Bit 200-ksps Analog-to-Digital (A/D) Converter With Internal Reference,
Sample-and-Hold, Autoscan, and Data Transfer Controller
Serial Onboard Programming, No External Programming Voltage Needed
Programmable Code Protection by Security Fuse
Bootstrap Loader
On-Chip Emulation Module
Family Members Include:
- MSP430F4152:
  16KB+256B Flash Memory
  512B RAM
- MSP430F4132:
  8KB+256B Flash Memory
  512B RAM
Available in 64-Pin QFP Package and 48-Pin QFN Package
(See Available Options)
For Complete Module Descriptions, See The MSP430x4xx Family User’s Guide,
Literature Number SLAU056

Frequency (MHz)	8
Nonvolatile memory (kByte)	8
RAM (kByte)	0.5
ADC type	10-bit SAR
Number of ADC channels	8
Number of GPIOs	56
Features	LCD, Real-time clock
UART	1
USB	No
Number of I2Cs	1
SPI	1
Number of comparator channels	2
Timers - 16-bit	2
Bootloader (BSL)	UART
Operating temperature range (°C)	-40 to 85
Rating	Catalog

LQFP (PM)	64	144 mm² 12 x 12
VQFN (RGZ)	48	49 mm² 7 x 7
