• Highlights
  • High-Performance Digital Media System-on-Chip (DMSoC)
  • Up to 300-MHz ARM926EJ-S Clock Rate
  • Two Video Image Co-processors (HDVICP, MJCP) Engines
  • Supports a Range of Encode, Decode, and Video Quality Operations
  • Video Processing Subsystem
    • HW Face Detect Engine
    • Resize Engine from 1/16x to 8x
    • 16-Bit Parallel AFE (Analog Front-End) Interface Up to 120 MHz
    • 4:2:2 (8-/16-bit) Interface
    • 8-/16-bit YCC and Up to 24-Bit RGB888 Digital Output
    • 3 DACs for HD Analog Video Output
    • Hardware On-Screen Display (OSD)
  • Capable of 720p 30fps H.264 video processing
    Note: 216-MHz is only capable of D1 processing
  • Peripherals include EMAC, USB 2.0 OTG, DDR2/NAND, 5 SPIs, 2 UARTs, 2 MMC/SD/SDIO, Key Scan
  • 8 Different Boot Modes and Configurable Power-Saving Modes
  • Pin-to-pin and software compatible with DM368
  • Extended temperature (-40°C - 85°C) available for 300-Mhz device
  • 3.3-V and 1.8-V I/O, 1.2-V/1.35-V Core
  • 338-Pin Ball Grid Array at 65nm Process Technology
• High-Performance Digital Media System-on-Chip (DMSoC)
  • 216-, 270-, 300-MHz ARM926EJ-S Clock Rate
  • Fully Software-Compatible With ARM9™
• ARM926EJ-S™ Core
  • Support for 32-Bit and 16-Bit (Thumb® Mode) Instruction Sets
  • DSP Instruction Extensions and Single Cycle MAC
  • ARM® Jazelle® Technology
  • EmbeddedICE-RT Logic for Real-Time Debug
• ARM9 Memory Architecture
  • 16K-Byte Instruction Cache
  • 8K-Byte Data Cache
  • 32K-Byte RAM
  • 16K-Byte ROM
  • Little Endian
• Two Video Image Co-processors (HDVICP, MJCP) Engines
  • Support a Range of Encode and Decode Operations
  • H.264, MPEG4, MPEG2, MJPEG, JPEG, WMV9/VC1
• Video Processing Subsystem
  • Front End Provides:
    • HW Face Detect Engine
    • Hardware IPIPE for Real-Time Image Processing
      • Resize Engine
        • Resize Images From 1/16× to 8×
        • Separate Horizontal/Vertical Control
        • Two Simultaneous Output Paths
    • IPIPE Interface (IPIPEIF)
    • Image Sensor Interface (ISIF) and CMOS Imager Interface
    • 16-Bit Parallel AFE (Analog Front End) Interface Up to 120 MHz
    • Glueless Interface to Common Video Decoders
    • BT.601/BT.656/BT.1120 Digital YCbCr 4:2:2 (8-/16-Bit Module
    • Histogram Module
    • Lens distortion correction module (LDC)
    • Hardware 3A statistics collection module (H3A)
  • Back End Provides:
    • Hardware On-Screen Display (OSD)
    • Composite NTSC/PAL video encoder output
    • 8-/16-bit YCC and Up to 24-Bit RGB888 Digital Output
    • 3 DACs for HD Analog Video Output
    • LCD Controller
    • BT.601/BT.656 Digital YCbCr 4:2:2 (8-/16-Bit) Interface
• Analog-to-Digital Convertor (ADC)
• Power Management and Real Time Clock Subsystem (PRTCSS)
  • Real Time Clock
• 16-Bit Host-Port Interface (HPI)
• 10/100 Mb/s Ethernet Media Access Controller (EMAC) - Digital Media
  • IEEE 802.3 Compliant
  • Supports Media Independent Interface (MII)
  • Management Data I/O (MDIO) Module
• Key Scan
• Voice Codec
• External Memory Interfaces (EMIFs)
  • DDR2 and mDDR SDRAM 16-bit wide EMIF With 256 MByte Address Space (1.8-V I/O)
  • Asynchronous16-/8-bit Wide EMIF (AEMIF)
    • Flash Memory Interfaces
      • NAND (8-/16-bit Wide Data)
      • 16 MB NOR Flash, SRAM
      • OneNAND(16-bit Wide Data)
• Flash Card Interfaces
  • Two Multimedia Card (MMC) / Secure Digital (SD/SDIO)
  • SmartMedia/xD
• Enhanced Direct-Memory-Access (EDMA) Controller (64 Independent Channels)
• USB port with Integrated 2.0 High-Speed PHY that Supports
  • USB 2.0 High-Speed Device
  • USB 2.0 High-Speed Host (mini-host, supporting one external device)
  • USB On The Go (HS-USB OTG)
• Four 64-Bit General-Purpose Timers (each configurable as two 32-bit timers)
• One 64-Bit Watch Dog Timer
• Two UARTs (One fast UART with RTS and CTS Flow Control)
• Five Serial Port Interfaces (SPI) each with two Chip-Selects
• One Master/Slave Inter-Integrated Circuit (I²C) Bus™
• One Multi-Channel Buffered Serial Port (McBSP)
  • I2S
  • AC97 Audio Codec Interface
  • S/PDIF via Software
  • Standard Voice Codec Interface (AIC12)
  • SPI Protocol (Master Mode Only)
  • Direct Interface to T1/E1 Framers
  • Time Division Multiplexed Mode (TDM)
  • 128 Channel Mode
• Four Pulse Width Modulator (PWM) Outputs
• Four RTO (Real Time Out) Outputs
• Up to 104 General-Purpose I/O (GPIO) Pins (Multiplexed with Other Device Functions)
• Boot Modes
  • On-Chip ARM ROM Bootloader (RBL) to Boot From NAND Flash, MMC/SD, UART, USB, SPI, EMAC, or HPI
  • AEMIF (NOR and OneNAND)
• Configurable Power-Saving Modes
• Crystal or External Clock Input (typically 19.2 Mhz, 24 MHz, 27 Mhz or 36 MHz)
• Flexible PLL Clock Generators
• Debug Interface Support
  • IEEE-1149.1 (JTAG™) Boundary-Scan-Compatible
  • ETB (Embedded Trace Buffer) with 4K-Bytes Trace Buffer memory
  • Device Revision ID Readable by ARM

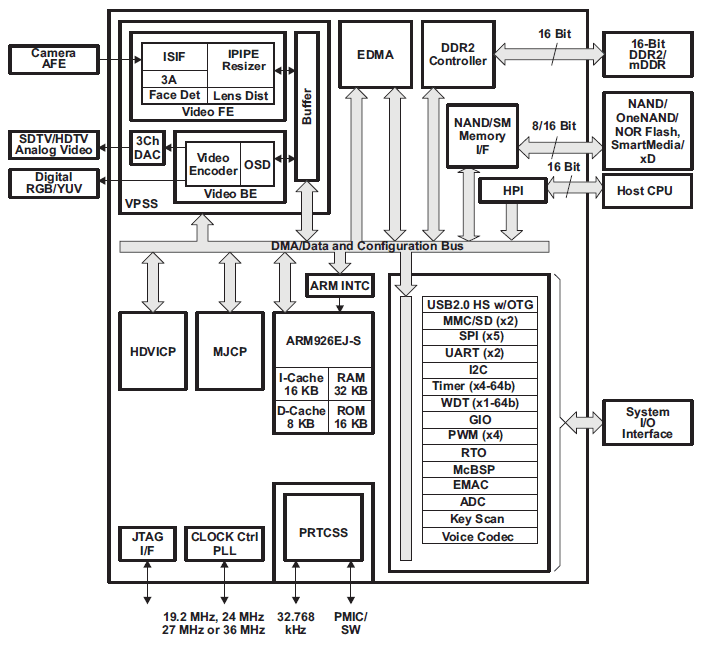

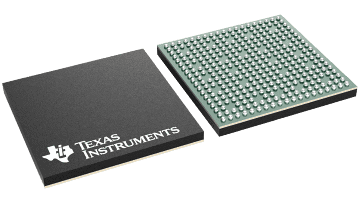

• 338-Pin Ball Grid Array (BGA) Package (ZCE Suffix), 0.65-mm Ball Pitch
• 65nm Process Technology
• 3.3-V and 1.8-V I/O, 1.2-V/ 1.35-V Internal
