The Texas Instruments MSP430 family of ultralow-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6µs.
The MSP430FG42x0 is a microcontroller configuration with a 16-bit timer, a high-performance 16-bitsigma-delta A/D converter, 12-bit D/A converter, two configurable operational amplifiers, 32 I/O pins, and a liquid crystal display driver.
Typical applications for this device include analog and digital sensor systems, digital motor control, remote controls, thermostats, digital timers, hand-held meters, etc.
| Frequency (MHz) | 8 |
| Nonvolatile memory (kByte) | 16 |
| RAM (kByte) | 0.25 |
| ADC type | 16-bit Sigma Delta |
| Number of ADC channels | 5 |
| Number of GPIOs | 32 |
| Features | Advanced sensing, DAC, LCD, OpAmp |
| UART | 0 |
| USB | No |
| Number of I2Cs | 0 |
| SPI | 0 |
| Number of comparator channels | 0 |
| Timers - 16-bit | 1 |
| Bootloader (BSL) | UART |
| Operating temperature range (°C) | -40 to 85 |
| Rating | Catalog |
| SSOP (DL) | 48 | 164.358 mm² 15.88 x 10.35 |

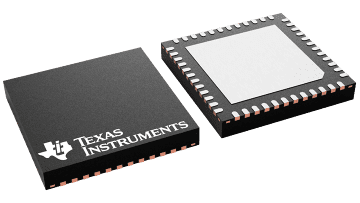

| VQFN (RGZ) | 48 | 49 mm² 7 x 7 |
