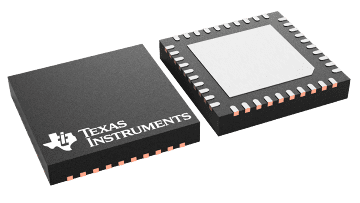

MSP430F2330

正在供货

具有 8KB 闪存、1KB SRAM、比较器、I2C/SPI/UART 和硬件乘法器的 16MHz MCU

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.

The MSP430F23x0 series is an ultra-low-power microcontroller with two built-in 16-bit timers, one universal serial communication interface (USCI), a versatile analog comparator, and 32 I/O pins.

Low Supply Voltage Range: 1.8 V to 3.6 V
Ultra-Low Power Consumption
- Active Mode: 270 µA at 1 MHz, 2.2 V
- Standby Mode: 0.7 µA
- Off Mode (RAM Retention): 0.1 µA
Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs
16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
Basic Clock Module Configurations
- Internal Frequencies up to 16 MHz With
  Four Calibrated Frequencies to ±1%
- Internal Very-Low-Power Low-Frequency (LF) Oscillator
- 32-kHz Crystal
- High-Frequency (HF) Crystal up to 16 MHz
- Resonator
- External Digital Clock Source
- External Resistor
16-Bit Timer_A With Three Capture/Compare Registers
16-Bit Timer_B With Three Capture/Compare Registers
On-Chip Comparator for Analog Signal Compare Function or
Slope Analog-to-Digital (A/D) Conversion
Universal Serial Communication Interface
- Enhanced UART Supporting Auto Baudrate Detection (LIN)
- IrDA Encoder and Decoder
- Synchronous SPI
- I²C™
Brownout Detector
Serial Onboard Programming, No External Programming Voltage Needed,
Programmable Code Protection by Security Fuse
Bootstrap Loader
On-Chip Emulation Module
Family Members Include:
- MSP430F2330: 8KB + 256B Flash Memory, 1KB RAM
- MSP430F2350: 16KB + 256B Flash Memory, 2KB RAM
- MSP430F2370: 32KB + 256B Flash Memory, 2KB RAM
Available in 40-Pin QFN Package and 49-Pin Die-Sized BGA Package
For Complete Module Descriptions, See the MSP430x2xx Family User's Guide (SLAU144)

Frequency (MHz)	16
Nonvolatile memory (kByte)	8
RAM (kByte)	1
ADC type	Slope
Number of ADC channels	0
Number of GPIOs	32
Features	Bootstrap loader, Brown out detector
UART	1
USB	No
Number of I2Cs	1
SPI	1
Number of comparator channels	8
Timers - 16-bit	2
Bootloader (BSL)	UART
Operating temperature range (°C)	-40 to 105
Rating	Catalog

VQFN (RHA)

36 mm² 6 x 6
