• Low-Power, High-Performance CMOS Technology
  • 0.13-µm Technology
  • 192-MHz Maximum Frequency
  • 1.6 ± 5% V Core Voltage
• ARM926EJ-S™ (MPU) Core
  • Support for 32-Bit and 16-Bit (Thumb® Mode) Instruction Sets
  • 16K-Byte Instruction Cache
  • 8K-Byte Data Cache
  • Data and Program Memory Management Unit (MMU)
  • 17-Word Write Buffer
  • Two 64-Entry Translation Look-Aside Buffers (TLBs) for MMUs
• TMS320C55x™ (C55x™) DSP Core
  • One/Two Instructions Executed per Cycle
  • Dual Multipliers (Two Multiply-Accumulates per Cycle)
  • Two Arithmetic/Logic Units
  • Five Internal Data/Operand Buses (3 Read Buses and 2 Write Buses)
  • 32K x 16-Bit On-Chip Dual-Access RAM (DARAM) (64K Bytes)
  • 48K x 16-Bit On-Chip Single-Access RAM (SARAM) (96K Bytes)
  • Instruction Cache (24K Bytes)
  • Video Hardware Accelerators for DCT, iDCT, Pixel Interpolation, and Motion Estimation for Video Compression
• 250K Bytes of Shared Internal SRAM
• Memory Traffic Controller (TC)
  • 16-Bit EMIFS Supports up to 256M Bytes of External Memory (i.e., Async. ROM/RAM, NOR/NAND Flash, and Sync. Burst Flash)
  • 16-Bit EMIFF to Access up to 64M Bytes of SDRAM, Mobile SDRAM, or Mobile DDR
• DSP Memory Management Unit
• DSP Peripherals
  • Three 32-Bit Timers and Watchdog Timer
  • Six-Channel DMA Controller
  • Two Multichannel Buffered Serial Ports
  • Two Multichannel Serial Interfaces
• MPU Peripherals
  • Three 32-Bit Timers and Watchdog Timer
  • USB 1.1 Host and Client Controllers
  • USB On-the-Go (OTG) Controller
  • 3 USB Ports, One With an Integrated Transceiver
  • Camera Interface for Parallel CMOS Sensors
  • Real-Time Clock (RTC)
  • Pulse-Width Tone (PWT) Interface
  • Pulse-Width Light (PWL) Interface
  • Keyboard Matrix Interface (6 x 5 or 8 x 8)
  • HDQ/1-Wire® Interface
  • Multimedia Card (MMC) and Secure Digital (SD) Interface
  • Up to 16 MPU General-Purpose I/Os
  • Two LED Pulse Generators (LPGs)
  • ETM9™ Trace Module for ARM926EJ-S Debug
  • 16-/18-Bit LCD Controller With Dedicated System DMA Channel
  • 32-kHz Operating System (OS) Timer
• Shared Peripherals
  • 8 General-Purpose Timers
  • Serial Port Interface (SPI)
  • Three Universal Asynchronous Receiver/Transmitters (UARTs) (Two Supporting SIR mode for IrDA)
  • Inter-Integrated Circuit (I²C) Master and Slave Interface
  • Multimedia Card (MMC) and Secure Digital (SD) Interface
  • Multichannel Buffered Serial Port
  • Up to 64 Shared General-Purpose I/Os
  • 32-kHz Synchro Counter
• Endian Conversion Unit
• Hardware Accelerators for Cryptographic Functions
  • Random Number Generation
  • DES and 3DES
  • SHA-1 and MD5
• Individual Power-Saving Modes for MPU/DSP/TC
• On-Chip Scan-Based Emulation Logic
• IEEE Std 1149.1 (JTAG) Boundary Scan Logic

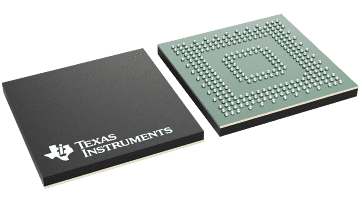

• Three 289-Ball BGA (Ball Grid Array) Packages (ZDY and ZZG - Lead-Free; GDY - With Lead)
• The OMAP5912 device is targeted at the following applications:
  • Applications Processing Devices
  • Mobile Communications
    • WAN 802.11X
    • Bluetooth™
    • GSM, GPRS, EDGE
    • CDMA
  • Video and Image Processing (MPEG4, JPEG, Windows® Media Video, etc.)
  • Advanced Speech Applications (text-to-speech, speech recognition)
  • Audio Processing (MPEG-1 Audio Layer3 [MP3], AMR, WMA, AAC, and Other GSM Speech Codecs)
  • Graphics and Video Acceleration
  • Generalized Web Access
  • Data Processing

IEEE Standard 1149.1-1990 Standard Test-Access Port and Boundary Scan Architecture.


TMS320C55x, C55x, OMAP, and DSP/BIOS are trademarks of Texas Instruments.
ARM926EJ-S and ETM9 are trademarks of ARM Limited in the EU and other countries.
Thumb and ARM are registered trademarks of ARM Limited in the EU and other countries.
1-Wire is a registered trademark of Dallas Semiconductor Corporation.
Bluetooth is a trademark owned by Bluetooth SIG, Inc.
Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries.
