MSP430F167

正在供货

具有 32KB 闪存、1KB SRAM、12 位 ADC、双通道 12 位 DAC、比较器、DMA 和 I2C/SPI/UART 的 8MHz MCU

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The Texas Instruments MSP430 family of ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 µs.

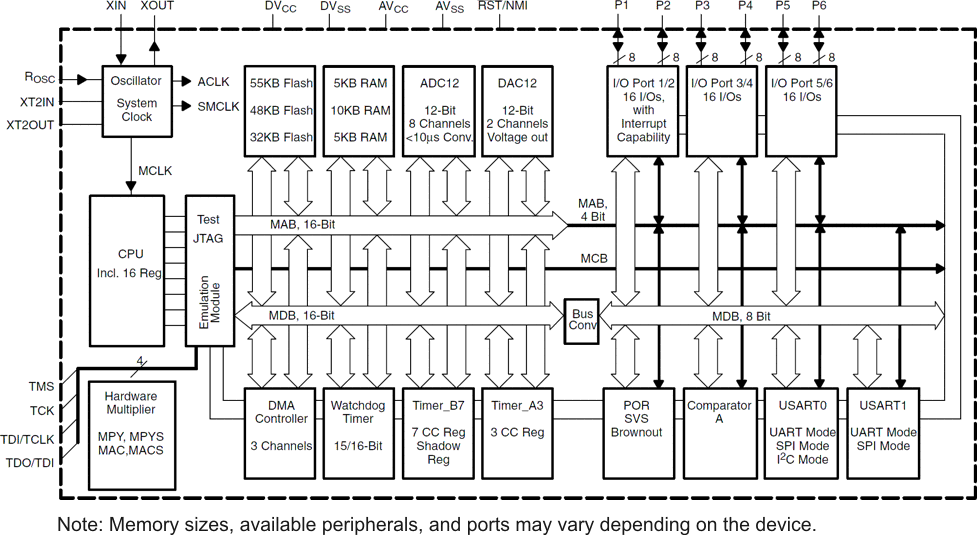

The MSP430F15x/16x/161x series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter, dual 12-bit D/A converter, one or two universal serial synchronous/asynchronous communication interfaces (USART), I2C, DMA, and 48 I/O pins. In addition, the MSP430F161x series offers extended RAM addressing for memory-intensive applications and large C-stack requirements.

Typical applications include sensor systems, industrial control applications, hand-held meters, etc.

Low Supply-Voltage Range: 1.8 V to 3.6 V
Ultralow Power Consumption
- Active Mode: 330 µA at 1 MHz, 2.2 V
- Standby Mode: 1.1 µA
- Off Mode (RAM Retention): 0.2 µA
Five Power-Saving Modes
Wake-Up From Standby Mode in Less Than 6 µs
16-Bit RISC Architecture,
125-ns Instruction Cycle Time
Three-Channel Internal DMA
12-Bit Analog-to-Digital (A/D) Converter
With Internal Reference, Sample-and-Hold,
and Autoscan Feature
Dual 12-Bit Digital-to-Analog (D/A)
Converters With Synchronization
16-Bit Timer_A With Three
Capture/Compare Registers
16-Bit Timer_B With Three or Seven
Capture/Compare-With-Shadow Registers
On-Chip Comparator
Serial Communication Interface (USART0),
Functions as Asynchronous UART or
Synchronous SPI or I²C™ Interface
Serial Communication Interface (USART1),
Functions as Asynchronous UART or
Synchronous SPI Interface
Supply Voltage Supervisor/Monitor With
Programmable Level Detection
Brownout Detector
Bootstrap Loader
Serial Onboard Programming, No External
Programming Voltage Needed, Programmable
Code Protection by Security Fuse
Family Members Include
- MSP430F155
  16KB+256B Flash Memory
  512B RAM
- MSP430F156
  24KB+256B Flash Memory
  1KB RAM
- MSP430F157
  32KB+256B Flash Memory,
  1KB RAM
- MSP430F167
  32KB+256B Flash Memory,
  1KB RAM
- MSP430F168
  48KB+256B Flash Memory,
  2KB RAM
- MSP430F169
  60KB+256B Flash Memory,
  2KB RAM
- MSP430F1610
  32KB+256B Flash Memory
  5KB RAM
- MSP430F1611
  48KB+256B Flash Memory
  10KB RAM
- MSP430F1612
  55KB+256B Flash Memory
  5KB RAM

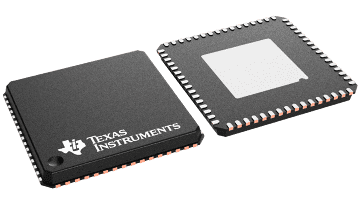

Available in 64-Pin QFP Package (PM) and
64-Pin QFN Package (RTD)
For Complete Module Descriptions, See the
MSP430x1xx Family User’s Guide,
Literature Number SLAU049

I²C is a registered trademark of Philips Incorporated.

Frequency (MHz)	8
Nonvolatile memory (kByte)	32
RAM (kByte)	1
ADC type	12-bit SAR
Number of ADC channels	8
Number of GPIOs	48
Features	Brown out detector, DAC, DMA
UART	2
USB	No
Number of I2Cs	1
SPI	2
Number of comparator channels	2
Timers - 16-bit	2
Bootloader (BSL)	UART
Operating temperature range (°C)	-40 to 85
Rating	Catalog

LQFP (PM)	64	144 mm² 12 x 12
VQFNP (RTD)	64	81 mm² 9 x 9
