• SMJ: QML Processing to MIL-PRF-38535
• SM: Standard Processing
• TMP: Commercial Level Processing TAB
• Operating Temperature Ranges:
  • Military (M) -55°C to 125°C
  • Special (S) -55°C to 100°C
  • Commercial (C) -25°C to 85°C
  • Commercial (L) 0°C to 70°C
• Highest Performance Floating-Point Digital Signal Processor (DSP)
  • C40-60:
  33-ns Instruction Cycle Time:
  60 MFLOPS, 30 MIPS, 330 MOPS, 384 MBps
  • C40-50:
  40-ns Instruction Cycle Time:
  50 MFLOPS, 25 MIPS, 275 MOPS, 320 MBps
  • C40-40:
  50-ns Instruction Cycle Time:
  40 MFLOPS, 20 MIPS, 220 MOPS, 256 MBps
• Six Communications Ports
• 6-Channel Direct Memory Access (DMA) Coprocessor
• Single-Cycle Conversion to and From IEEE-745 Floating-Point Format
• Single Cycle 1/x, 1/x
• Source-Code Compatible With SMJ320C30
• Validated Ada Compiler
• Single-Cycle 40-Bit Floating-Point, 32-Bit Integer Multipliers
• 12 40-Bit Registers, 8 Auxiliary Registers, 14 Control Registers, and 2 Timers
• IEEE Standard 1149.1 Test-Access Port (JTAG)
• Two Identical External Data and Address Buses Supporting Shared Memory Systems and High Data-Rate, Single-Cycle Transfers:
  • High Port-Data Rate of 100 MBytes/s (Each Bus)
  • 16G-Byte Continuous Program/Data/Peripheral Address Space
  • Memory-Access Request for Fast, Intelligent Bus Arbitration
  • Separate Address-, Data-, and Control-Enable Pins
  • Four Sets of Memory-Control Signals Support Different Speed Memories in Hardware
• Packaging:

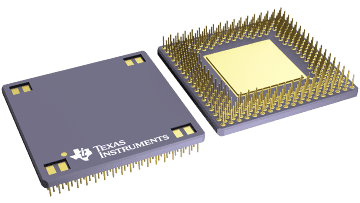

  • 325-Pin Ceramic Grid Array (GF Suffix)

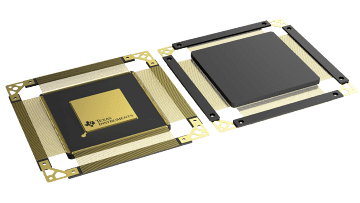

  • 352-Lead Ceramic Quad Flatpack (HFH Suffix)
  • 324-Pad JEDEC-Standard TAB Frame
• Fabricated Using Enhanced Performance Implanted CMOS (EPIC™) Technology by Texas Instruments (TI™)
• Separate Internal Program, Data, and DMA Coprocessor Buses for Support of Massive Concurrent Input/Output (I/O) of Program and Data Throughput, Maximizing Sustained Central Processing Unit (CPU) Performance
• On-Chip Program Cache and Dual-Access/Single-Cycle RAM for Increased Memory-Access Performance
  • 512-Byte Instruction Cache
  • 8K Bytes of Single-Cycle Dual-Access Program or Data RAM
  • ROM-Based Bootloader Supports Program Bootup Using 8-, 16-, or 32-Bit Memories Over Any One of the Communications Ports

IEEE Standard 1149.1- 1990, IEEE Standard Test-Access Port and Boundary-Scan Architecture.
EPIC and TI are trademarks of Texas Instruments Incorporated.
