The LMH6702 is a very wideband, DC coupled monolithic operational amplifier designed specifically for wide dynamic range systems requiring exceptional signal fidelity. Benefitting from TI's current feedback architecture, the LMH6702 offers unity gain stability at exceptional speed without need for external compensation.

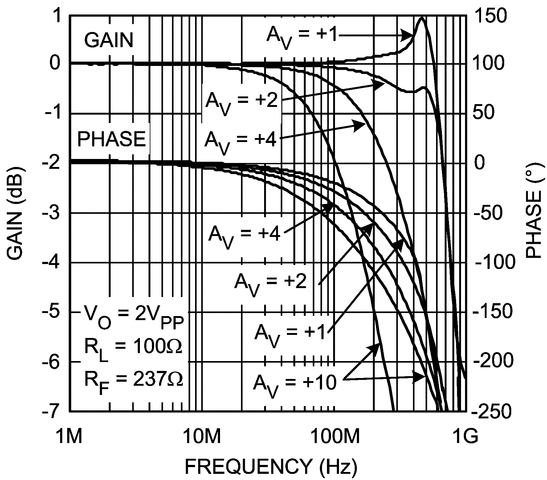

With its 720MHz bandwidth (AV = 2V/V, VO = 2VPP), 10-bit distortion levels through 60MHz (RL = 100Ω), 1.83nV/√Hz input referred noise and 12.5mA supply current, the LMH6702 is the ideal driver or buffer for high-speed flash A/D and D/A converters.
Wide dynamic range systems such as radar and communication receivers, requiring a wideband amplifier offering exceptional signal purity, will find the LMH6702's low input referred noise and low harmonic and intermodulation distortion make it an attractive high speed solution.
The LMH6702 is constructed using TI's VIP10 complimentary bipolar process and TI's proven current feedback architecture.
All trademarks are the property of their respective owners.
| Architecture | Current FB |
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 10 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 12 |
| GBW (typ) (MHz) | 1700 |
| BW at Acl (MHz) | 1700 |
| Acl, min spec gain (V/V) | 1 |
| Slew rate (typ) (V/µs) | 3100 |
| Vn at flatband (typ) (nV√Hz) | 1.83 |
| Vn at 1 kHz (typ) (nV√Hz) | 4.5 |
| Iq per channel (typ) (mA) | 12.5 |
| Vos (offset voltage at 25°C) (max) (mV) | 4.5 |
| Rail-to-rail | No |
| Rating | Space |
| Operating temperature range (°C) | -55 to 125 |
| CMRR (typ) (dB) | 48 |
| Input bias current (max) (pA) | 15000000 |
| Offset drift (typ) (µV/°C) | 13 |
| Iout (typ) (mA) | 80 |
| 2nd harmonic (dBc) | 52 |
| 3rd harmonic (dBc) | 62 |
| Frequency of harmonic distortion measurement (MHz) | 20 |
| Radiation, TID (typ) (krad) | 300 |
| Radiation, SEL (MeV·cm2/mg) | Bipolar |

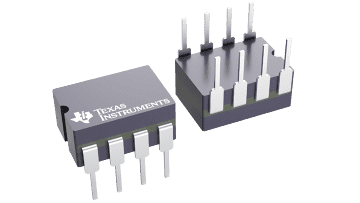

| CDIP (NAB) | 8 | 79.9592 mm² 10.16 x 7.87 |

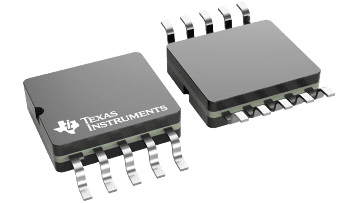

| CFP (NAC) | 10 | 62.9285 mm² 9.91 x 6.35 |
