UCC27212

UCC27212

正在供货

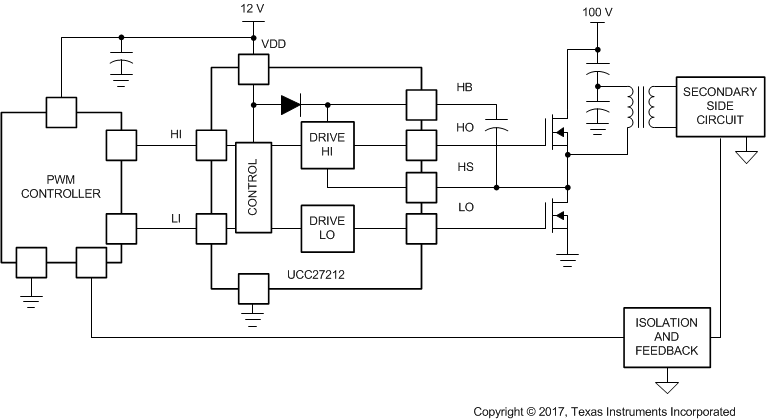

具有 5V UVLO 和负电压处理能力的 4A、120V 半桥栅极驱动器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

The UCC27212 device has a peak output current of 4-A source and 4-A sink, which allows for the ability to drive large power MOSFETs. The device features an on-chip 120-V rated bootstrap diode eliminating the need for external discrete diodes. The input structure can directly handle –10 V, which increases robustness and is also independent of supply voltage. The UCC27212 offers 5 V UVLO which helps lower power losses and increased input hysteresis that allows for interface to analog or digital PWM controllers with enhanced noise immunity. The switching node of the UCC27212 (HS pin) can handle –18-V maximum, which allows the high-side channel to be protected from inherent negative voltages.

  • 4-A Sink, 4-A Source Output Currents
  • Maximum Boot Voltage 120-V DC
  • 7-V to 17-V VDD Operating Range
  • 20-V ABS Maximum VDD Operating Range
  • 5-V Turn-off Under Voltage Lockout (UVLO)
  • Input Pins Can Tolerate –10 V to +20 V
  • 7.2-ns Rise and 5.5-ns Fall Time (1000-pF Load)
  • 20-ns Typical Propagation Delay
  • 4-ns Typical Delay Matching
  • Specified from –40°C to +140°C
Bus voltage (max) (V)120
Power switchMOSFET
Input VCC (min) (V)5
Input VCC (max) (V)17
Peak output current (A)4
Operating temperature range (°C)-40 to 140
Undervoltage lockout (typ) (V)5
RatingCatalog
Propagation delay time (µs)0.02
Rise time (ns)7.2
Fall time (ns)5.5
Iq (mA)0.001
Input thresholdTTL
Channel input logicTTL
Negative voltage handling at HS pin (V)-20
Driver configurationDual inputs

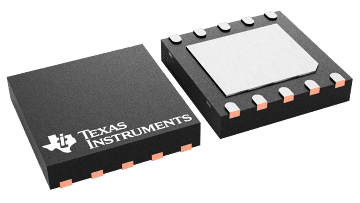

WSON (DPR)1016 mm² 4 x 4
