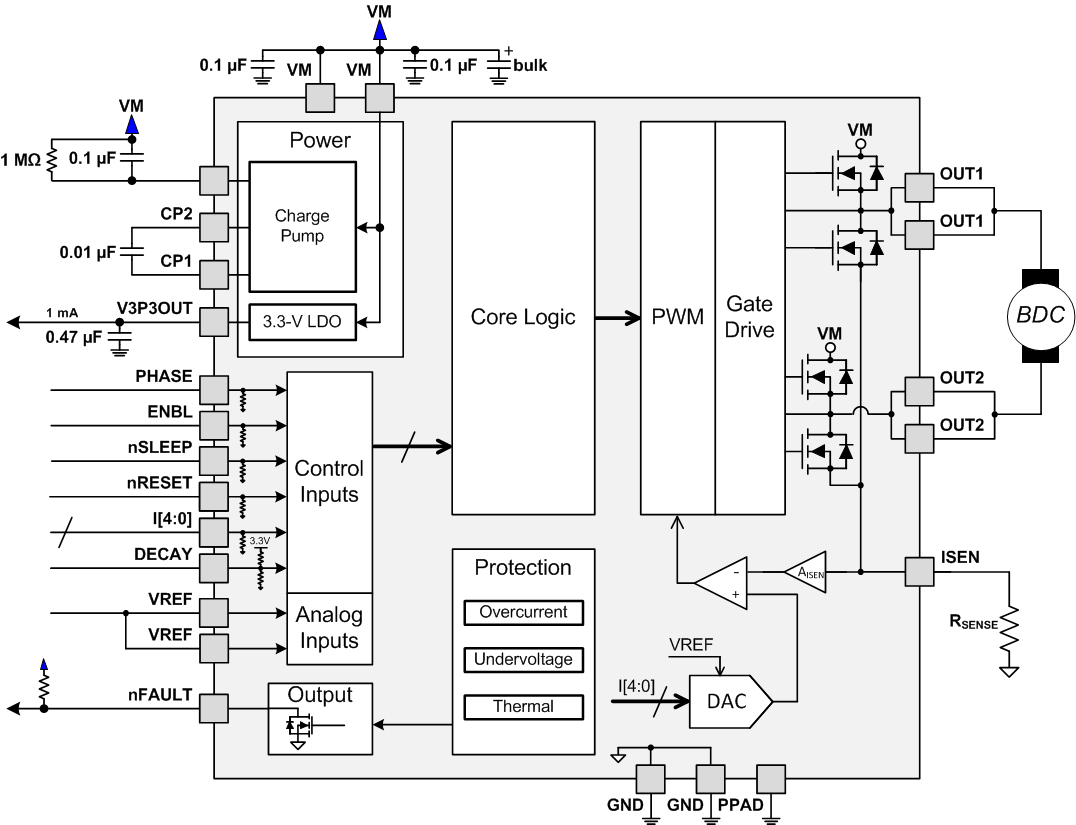

The DRV8829 is a brushed-DC motor or 1/2 bipolar stepper driver for industrial applications. The device ouptut stage consists of an N-channel power MOSFET H-bridge driver. The DRV8829 is capable of driving up to 5-A peak current or 3.5-A rms current (with proper printed-circuit-board ground plane for thermal dissipation and at 24 V and TA = 25°C).
The PH/EN pins provide a simple control interface. An internal sense amplifier allows for adjustable current control. A low-power sleep mode is provided for very low quiescent current standby using a dedicated nSLEEP pin. Current regulation decay mode can be set to slow, fast, or mixed decay.
Internal protection functions are provided for undervoltage, overcurrent, short-circuits, and overtemperature. Fault conditions are indicated by a nFAULT pin.
All other trademarks are the property of their respective owners
| Number of full bridges | 1 |
| Vs (min) (V) | 8.2 |
| Vs ABS (max) (V) | 50 |
| Peak output current (A) | 6 |
| RDS(ON) (HS + LS) (mΩ) | 200 |
| Sleep current (µA) | 10 |
| Control mode | PH/EN |
| Control interface | Hardware (GPIO) |
| Features | Current Regulation |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

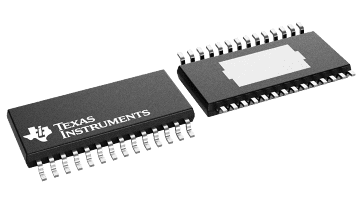

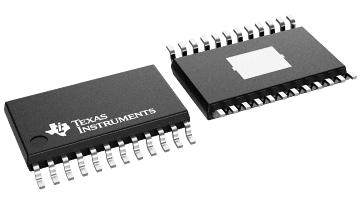

| HTSSOP (PWP) | 28 | 62.08 mm² 9.7 x 6.4 |
