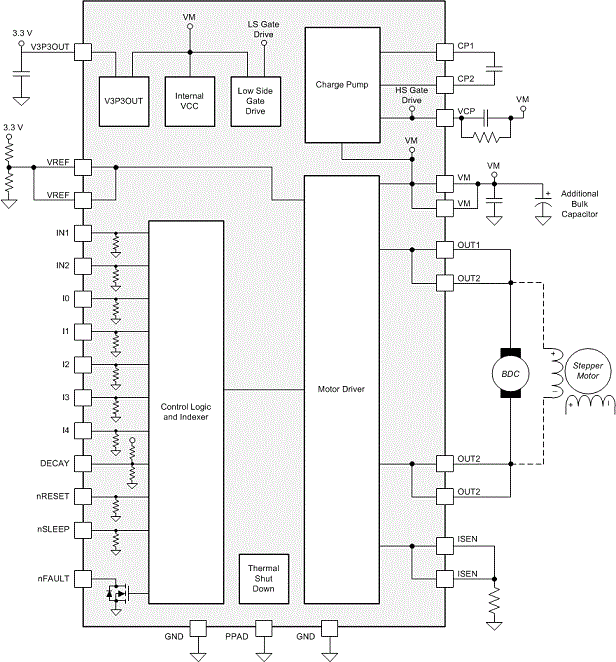

The DRV8842 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has one H-bridge driver, and is intended to drive one DC motor, one coil of a stepper motor, or other loads. The output driver block consists of N-channel power MOSFETs configured as an H-bridge. The DRV8842 can supply up to 5-A peak or 3.5-A RMS output current (with proper heatsinking at 24 V and 25°C).
Separate inputs to independently control each half of the H-bridge are provided.
Internal shutdown functions are provided for overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature.

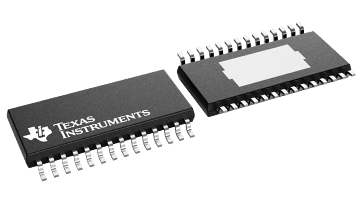

TheDRV8842 is available in a 28-pin HTSSOP package with PowerPAD (Eco-friendly: RoHS & no Sb/Br).
For all available packages, see the orderable addendum at the end of the datasheet.All trademarks are the property of their respective owners.
| Number of full bridges | 1 |
| Vs (min) (V) | 8.2 |
| Vs ABS (max) (V) | 47 |
| Peak output current (A) | 6 |
| RDS(ON) (HS + LS) (mΩ) | 200 |
| Sleep current (µA) | 10 |
| Control mode | PWM |
| Control interface | Hardware (GPIO) |
| Features | Current Regulation |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| HTSSOP (PWP) | 28 | 62.08 mm² 9.7 x 6.4 |
