The DRV8830 device provides an integrated motor driver solution for battery-powered toys, printers, and other low-voltage or battery-powered motion control applications. The device has one H-bridge driver, and can drive one DC motor or one winding of a stepper motor, as well as other loads like solenoids. The output driver block consists of N-channel and P-channel power MOSFETs configured as an H-bridge to drive the motor winding.
Provided with sufficient PCB heatsinking, the DRV8830 can supply up to 1-A of DC/RMS or peak output current. It operates on power supply voltages from 2.75 V to 6.8 V.
To maintain constant motor speed over varying battery voltages while maintaining long battery life, a PWM voltage regulation method is provided. The output voltage is programmed through an I2C-compatible interface, using an internal voltage reference and DAC.
Internal protection functions are provided for over current protection, short-circuit protection, undervoltage lockout, and overtemperature protection.

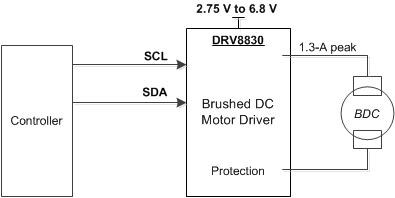

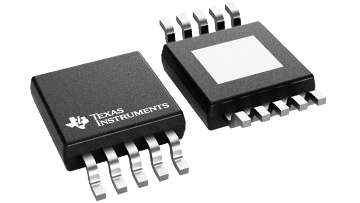

The DRV8830 is available in a tiny 3-mm × 3-mm 10-pin VSON package and HVSSOP package with PowerPAD™ (Eco-friendly: RoHS & no Sb/Br).
| Number of full bridges | 1 |
| Vs (min) (V) | 2.75 |
| Vs ABS (max) (V) | 7 |
| Peak output current (A) | 1.3 |
| RDS(ON) (HS + LS) (mΩ) | 450 |
| Sleep current (µA) | 0.3 |
| Control mode | I2C |
| Control interface | I2C |
| Features | Current Regulation |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| HVSSOP (DGQ) | 10 | 14.7 mm² 3 x 4.9 |
| VSON (DRC) | 10 | 9 mm² 3 x 3 |
