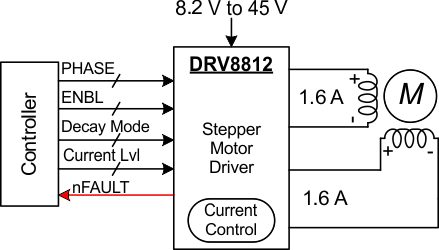

The DRV8812 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, and can drive a bipolar stepper motor or two DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as full H-bridges to drive the motor windings. The DRV8812 is capable of driving up to 1.6-A of output current (with proper heatsinking, at 24 V and 25°C).
A simple parallel digital control interface is compatible with industry-standard devices. Decay mode is programmable.
Internal shutdown functions are provided for over current protection, short circuit protection, under voltage lockout and overtemperature.

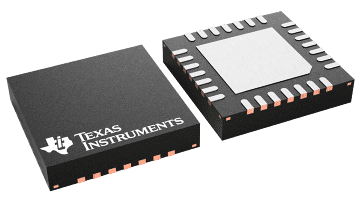

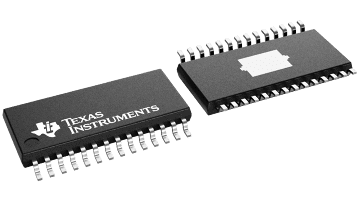

The DRV8812 is available in a 28-pin HTSSOP package with PowerPAD™ and in a 28-pin QFN package PowerPAD™ (Eco-friendly: RoHS & no Sb/Br).
All other trademarks are the property of their respective owners
| Number of full bridges | 2 |
| Vs (min) (V) | 8.2 |
| Vs ABS (max) (V) | 47 |
| Full-scale current (A) | 1.6 |
| Peak output current (A) | 1.8 |
| RDS(ON) (HS + LS) (mΩ) | 1280 |
| Sleep current (µA) | 10 |
| Control mode | PH/EN |
| Control interface | Hardware (GPIO) |
| Microstepping levels | 4 |
| Features | Current Regulation |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| HTSSOP (PWP) | 28 | 62.08 mm² 9.7 x 6.4 |
| VQFN (RHD) | 28 | 25 mm² 5 x 5 |
