The DRV8821 provides a dual microstepping-capable stepper motor controller/driver solution for printers, scanners, and other office automation equipment applications.
Two independent stepper motor driver circuits include four H-bridge drivers and microstepping-capable indexer logic. Each of the motor driver blocks employ N-channel power MOSFETs configured as an H-bridge to drive the motor windings.
A simple step/direction interface allows easy interfacing to controller circuits. Pins allow configuration of the motor in full-step, half-step, quarter-step, or eighth step modes, and the selection of slow or mixed decay modes.
Internal shutdown functions are provided for over current protection, short-circuit protection, undervoltage lockout, and overtemperature.

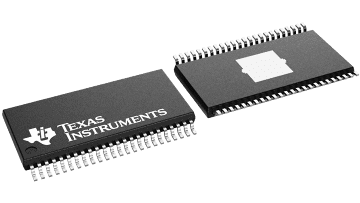

The DRV8821 is packaged in a 48-pin HTSSOP package (Eco-friendly : RoHS & no Sb/Br).
| Number of full bridges | 4 |
| Vs (min) (V) | 8 |
| Vs ABS (max) (V) | 34 |
| Full-scale current (A) | 1.5 |
| Peak output current (A) | 1.5 |
| RDS(ON) (HS + LS) (mΩ) | 550 |
| Sleep current (µA) | 20 |
| Control mode | STEP/DIR |
| Control interface | Hardware (GPIO) |
| Microstepping levels | 8 |
| Features | Current Regulation |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| HTSSOP (DCA) | 48 | 101.25 mm² 12.5 x 8.1 |
