UCC27200-Q1

UCC27200-Q1

正在供货

具有 8V UVLO 和 CMOS 输入的汽车类 3A、120V 半桥栅极驱动器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

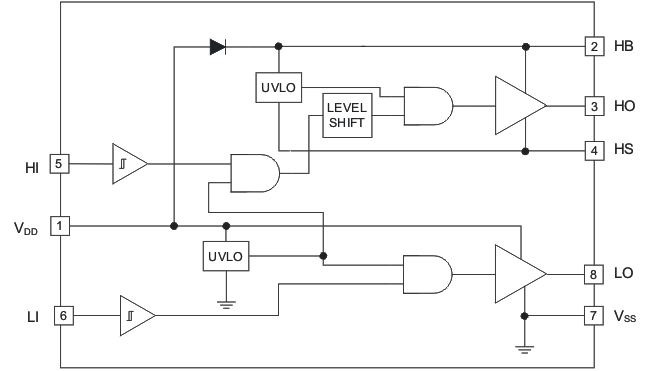

The UCC2720x-Q1 family of high-frequency N-channel MOSFET drivers include a 120-V bootstrap diode and high-side and low-side drivers with independent inputs for maximum control flexibility. This allows for N-channel MOSFET control in half-bridge, full-bridge, two-switch forward, and active-clamp forward converters. The low-side and the high-side gate drivers are independently controlled and matched to 1 ns between the turnon and turnoff of each other.

An on-chip bootstrap diode eliminates the external discrete diodes. Undervoltage lockout is provided for both the high-side and the low-side drivers, forcing the outputs low if the drive voltage is below the specified threshold.

Two versions of the UCC2720x-Q1 are offered – the UCC27200-Q1 has high-noise-immune CMOS input thresholds, and the UCC27201-Q1 has TTL-compatible thresholds.

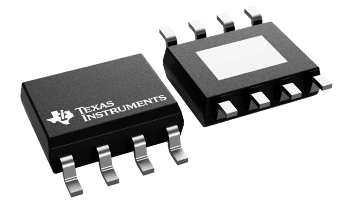

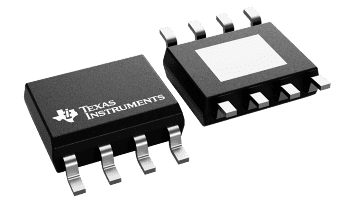

Both devices are offered in the 8-pin SO PowerPAD (DDA) package.

For all available packages, see the orderable addendum at the end of the data sheet.

  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results:
    • Device Temperature Grade 1:
      –40°C to 125°C Ambient Operating Temperature Range
    • Device HBM ESD Classification Level 2
    • Device CDM ESD Classification Level C5
  • Drives Two N-Channel MOSFETs in High-Side and Low-Side Configuration
  • Maximum Boot Voltage: 120 V
  • Maximum VDD Voltage: 20 V
  • On-Chip 0.65-V VF, 0.6-Ω RD Bootstrap Diode
  • Greater than 1 MHz of Operation
  • 20-ns Propagation Delay Times
  • 3-A Sink, 3-A Source Output Currents
  • 8-ns Rise and 7-ns Fall Time With 1000-pF Load
  • 1-ns Delay Matching
  • Specified from –40°C to 140°C (Junction Temperature)

All trademarks are the property of their respective owners.

Bus voltage (max) (V)110
Power switchMOSFET
Input VCC (min) (V)8
Input VCC (max) (V)17
Peak output current (A)3
Operating temperature range (°C)-40 to 125
Undervoltage lockout (typ) (V)8
RatingAutomotive
Propagation delay time (µs)0.02
Rise time (ns)8
Fall time (ns)7
Iq (mA)0.001
Input thresholdCMOS
Channel input logicCMOS
Negative voltage handling at HS pin (V)-5
Driver configurationNoninverting
HSOIC (DDA)829.4 mm² 4.9 x 6
