The UCD7201 is a member of the UCD7K family of digital control compatible drivers for applications utilizing digital control techniques or applications requiring fast local peak current limit protection.

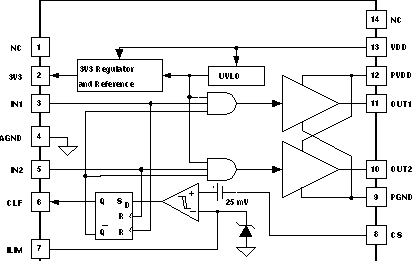

The UCD7201 includes dual low-side ±4-A high- current MOSFET gate drivers. It allows the digital power controllers such as UCD9110 or UCD9501 to interface to the power stage in double ended topologies. It provides a cycle-by-cycle current limit function for both driver channels, a programmable threshold and a digital output current limit flag which can be monitored by the host controller. With a fast cycle-by-cycle current limit protection, the driver can turn off the power stage in the event of an overcurrent condition.
| Number of channels | 2 |
| Power switch | IGBT, MOSFET |
| Peak output current (A) | 4 |
| Input VCC (min) (V) | 4.5 |
| Input VCC (max) (V) | 15 |
| Features | Programmable common current sense |
| Operating temperature range (°C) | -40 to 105 |
| Rise time (ns) | 10 |
| Fall time (ns) | 10 |
| Propagation delay time (µs) | 0.02 |
| Input threshold | CMOS, TTL |
| Channel input logic | CMOS, TTL |
| Input negative voltage (V) | 0 |
| Rating | Catalog |
| Undervoltage lockout (typ) (V) | 4.5 |
| Driver configuration | Dual, Uncommitted Non-Inverting |

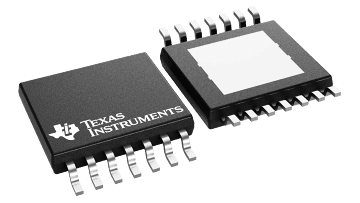

| HTSSOP (PWP) | 14 | 32 mm² 5 x 6.4 |
