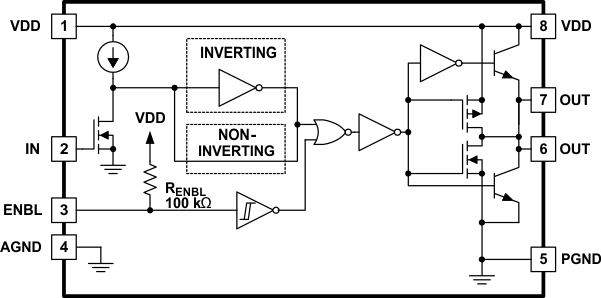

The UCC2732x/UCC3732x family of high-speed drivers deliver 9 A of peak drive current in an industry standard pinout. These drivers can drive the largest of MOSFETs for systems requiring extreme Miller current due to high dV/dt transitions. This eliminates additional external circuits and can replace multiple components to reduce space, design complexity, and assembly cost. Two standard logic options are offered, inverting (UCC37321) and noninverting (UCC37322).
| Number of channels | 1 |
| Power switch | IGBT, MOSFET |
| Peak output current (A) | 9 |
| Input VCC (min) (V) | 4 |
| Input VCC (max) (V) | 15 |
| Features | Enable pin |
| Operating temperature range (°C) | -40 to 105 |
| Rise time (ns) | 20 |
| Fall time (ns) | 20 |
| Propagation delay time (µs) | 0.025 |
| Input threshold | CMOS, TTL |
| Channel input logic | Inverting |
| Input negative voltage (V) | 0 |
| Rating | Catalog |
| Driver configuration | Single |
| HVSSOP (DGN) | 8 | 14.7 mm² 3 x 4.9 |
| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
