UC2710

UC2710

正在供货

具有 5V UVLO、分离接地层和 6A 峰值输出电流的 6A/6A 单路栅极驱动器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

The UC1710 family of FET drivers is made with a high-speed Schottky process to interface between low-level control functions and very high-power switching devices-particularly power MOSFETx92s. These devices accept low-current digital inputs to activate a high-current, totem pole output which can source or sink a minimum of 6A.

Supply voltages for both VIN and VC can independently range from 4.7V to 18V. These devices also feature under-voltage lockout with hysteresis.

The UC1710 is packaged in an 8-pin hermetically sealed dual in-line package for x9655°C to +125°C operation. The UC2710 and UC3710 are specified for a temperature range of x9640°C to +85°C and 0°C to +70°C respectively and are available in either an 8-pin plastic dual in-line or a 5-pin, TO-220 package. Surface mount devices are also available.

  • Totem Pole Output with 6A Source/Sink Drive
  • 3ns Delay
  • 20ns Rise and Fall Time into 2.2nF
  • 8ns Rise and Fall Time into 30nF
  • 4.7V to 18V Operation
  • Inverting and Non-Inverting Outputs
  • Under-Voltage Lockout with Hysteresis
  • Thermal Shutdown Protection
  • MINIDIP and Power Packages
Number of channels1
Power switchIGBT, MOSFET
Peak output current (A)6
Input VCC (min) (V)4.7
Input VCC (max) (V)18
FeaturesThermal shutdown
Operating temperature range (°C)-40 to 85
Rise time (ns)25
Fall time (ns)20
Propagation delay time (µs)0.035
Input thresholdCMOS
Channel input logicInverting, Non-Inverting
Input negative voltage (V)0
RatingCatalog
Undervoltage lockout (typ) (V)4
Driver configurationComplementary

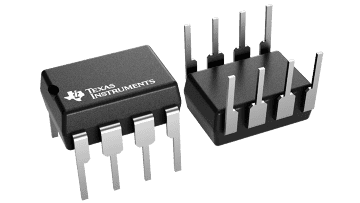

PDIP (P)892.5083 mm² 9.81 x 9.43
