The SN75372 is a dual NAND gate interface circuit designed to drive power MOSFETs from TTL inputs. It provides high current and voltage levels necessary to drive large capacitive loads at high speeds. The device operates from a VCC1 of 5 V and a VCC2 of up to 24 V.
The SN75372 is characterized for operation from 0°C to 70°C.
| Number of channels | 2 |
| Power switch | MOSFET |
| Peak output current (A) | 0.5 |
| Input VCC (min) (V) | 4.75 |
| Input VCC (max) (V) | 7 |
| Features | Low Quiescent Current |
| Operating temperature range (°C) | 0 to 70 |
| Rise time (ns) | 20 |
| Fall time (ns) | 20 |
| Propagation delay time (µs) | 0.065 |
| Input threshold | CMOS, TTL |
| Channel input logic | Non-Inverting |
| Input negative voltage (V) | 0 |
| Rating | Catalog |
| Driver configuration | Dual inputs |
| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |

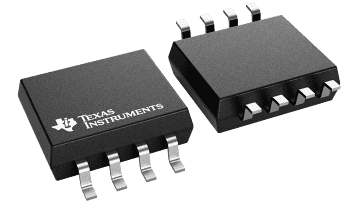

| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
| SOP (PS) | 8 | 48.36 mm² 6.2 x 7.8 |
