THS4509

THS4509

正在供货

1.9GHz、宽带、低噪声、低失真、全差分放大器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

The THS4509 device is a wideband, fully-differential op amp designed for 5-V data acquisition systems. It has a low noise at 1.9 nV/√Hz, and low harmonic distortion of –75 dBc HD2 and –80 dBc HD3 at 100 MHz with 2 VPP, G = 10 dB, and 1-kΩ load. Slew rate is high at 6600 V/µs, and with settling time of 2 ns to 1% (2-V step), it is ideal for pulsed applications. It is designed for a minimum gain of 6 dB, but is optimized for gains of 10 dB.

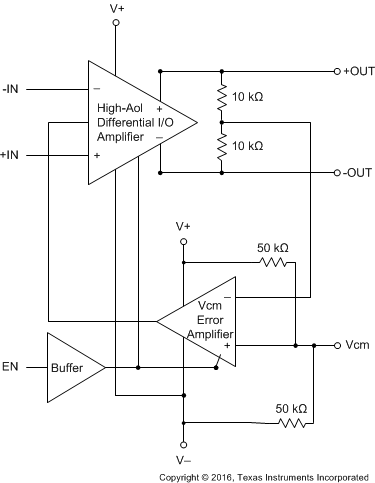

To allow for DC coupling to analog-to-digital converters (ADCs), its unique output common-mode control circuit maintains the output common-mode voltage within 3-mV offset (typical) from the set voltage, when set within 0.5-V of midsupply, with less than 4-mV differential offset voltage. The common-mode set point is set to midsupply by internal circuitry, which may be overdriven from an external source.

The input and output are optimized for best performance with the common-mode voltages set to midsupply. Along with high performance at low power-supply voltage, this design makes it ideal for high-performance, single-supply 5-V data acquisition systems. The combined performance of the THS4509 in a gain of 10 dB driving the ADS5500 ADC, sampling at 125 MSPS, is 81-dBc SFDR and 69.1-dBc SNR with a –1 dBFS signal at 70 MHz.

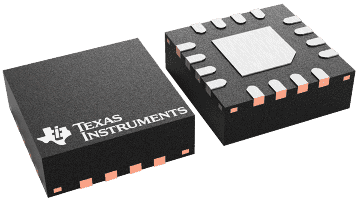

The THS4509 is offered in a quad, leadless VQFN-16 package (RGT), and is characterized for operation over the full industrial temperature range from –40°C to +85°C.

  • Fully-Differential Architecture
  • Centered Input Common-Mode Range
  • Output Common-Mode Control
  • Minimum Gain of 2 V/V (6 dB)
  • Bandwidth: 1900 MHz
  • Slew Rate: 6600 V/µs
  • 1% Settling Time: 2 ns
  • HD2: –75 dBc at 100 MHz
  • HD3: –80 dBc at 100 MHz
  • OIP3: 37 dBm at 70 MHz
  • Input Voltage Noise: 1.9 nV/√Hz (f > 10 MHz)
  • Power-Supply Voltage: 3 V to 5 V
  • Power-Supply Current: 37.7 mA
  • Power-Down Current: 0.65 mA
  • APPLICATIONS
    • 5-V Data Acquisition Systems High Linearity ADC Amplifiers
    • Wireless Communication
    • Medical Imaging
    • Test and Measurement

All other trademarks are the property of their respective owners

Number of channels1
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)3
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)5.25
BW at Acl (MHz)2000
Acl, min spec gain (V/V)2
Slew rate (typ) (V/µs)6600
ArchitectureBipolar, Fully Differential ADC Driver
Vn at flatband (typ) (nV√Hz)1.9
Iq per channel (typ) (mA)37.7
Rail-to-railNo
Vos (offset voltage at 25°C) (max) (mV)4
Operating temperature range (°C)-40 to 85
Iout (typ) (mA)96
2nd harmonic (dBc)104
3rd harmonic (dBc)108
Frequency of harmonic distortion measurement (MHz)10
GBW (typ) (MHz)3000
Input bias current (max) (pA)15500000
FeaturesDecompensated, Shutdown
CMRR (typ) (dB)90
RatingCatalog
VQFN (RGT)169 mm² 3 x 3
