The MC33078 is a bipolar dual operational amplifier with high-performance specifications for use in quality audio and data-signal applications. This device operates over a wide range of single- and dual-supply voltages and offers low noise, high-gain bandwidth, and high slew rate. Additional features include low total harmonic distortion, excellent phase and gain margins, large output voltage swing with no deadband crossover distortion, and symmetrical sink/source performance.
| Number of channels | 2 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 10 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 36 |
| GBW (typ) (MHz) | 16 |
| Slew rate (typ) (V/µs) | 7 |
| Rail-to-rail | No |
| Vos (offset voltage at 25°C) (max) (mV) | 2 |
| Iq per channel (typ) (mA) | 2.05 |
| Vn at 1 kHz (typ) (nV√Hz) | 4.5 |
| THD + N at 1 kHz (typ) (%) | 0.002 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Iout (typ) (A) | 0.029 |
| Architecture | Bipolar |
| CMRR (typ) (dB) | 100 |
| Input bias current (max) (pA) | 750000 |

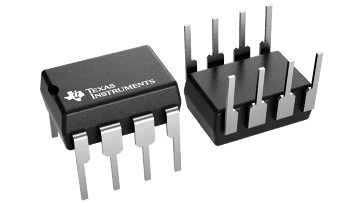

| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
