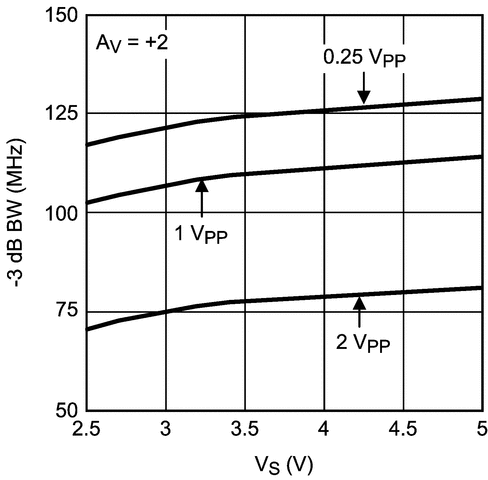

The LMH6601 device is a low-voltage (2.4 V to 5.5 V), high-speed voltage feedback operational amplifier suitable for use in a variety of consumer and industrial applications. With a bandwidth of 125 MHz at a gain of +2 and ensured high-output current of 100 mA, the LMH6601 is an ideal choice for video line driver applications, including HDTV. Low-input bias current (50 pA maximum), rail-to-rail output, and low current noise allow the use of the LMH6601 in various industrial applications such as transimpedance amplifiers, active filters, or high-impedance buffers. The LMH6601 is an attractive solution for systems which require high performance at low supply voltages. The LMH6601 is available in a 6-pin SC70 package, and includes a micropower shutdown feature.
| Architecture | FET / CMOS Input, Voltage FB |
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 2.4 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 5.5 |
| GBW (typ) (MHz) | 150 |
| BW at Acl (MHz) | 250 |
| Acl, min spec gain (V/V) | 1 |
| Slew rate (typ) (V/µs) | 275 |
| Vn at flatband (typ) (nV√Hz) | 10 |
| Vn at 1 kHz (typ) (nV√Hz) | 10 |
| Iq per channel (typ) (mA) | 9.6 |
| Vos (offset voltage at 25°C) (max) (mV) | 2.4 |
| Rail-to-rail | In to V-, Out |
| Features | Shutdown |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| CMRR (typ) (dB) | 68 |
| Input bias current (max) (pA) | 50 |
| Offset drift (typ) (µV/°C) | 5 |
| Iout (typ) (mA) | 150 |
| 2nd harmonic (dBc) | 56 |
| 3rd harmonic (dBc) | 73 |
| Frequency of harmonic distortion measurement (MHz) | 10 |
| SOT-SC70 (DCK) | 6 | 4.2 mm² 2 x 2.1 |
