THS3092

THS3092

正在供货

双通道高电压、低失真电流反馈运算放大器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

The THS3092 and THS3096 are dual high-voltage, low-distortion, high speed, current-feedback amplifiers designed to operate over a wide supply range of ±5 V to ±15 V for applications requiring large, linear output signals such as Pin, Power FET, and VDSL line drivers.

The THS3096 features a power-down pin (PD) that puts the amplifier in low power standby mode, and lowers the quiescent current from 9.5 mA to 500 µA.

The wide supply range combined with total harmonic distortion as low as -66 dBc at 10 MHz, in addition, to the high slew rate of 5700 V/µs makes the THS3092/6 ideally suited for high-voltage arbitrary waveform driver applications. Moreover, having the ability to handle large voltage swings driving into high-resistance and high-capacitance loads while maintaining good settling time performance makes the THS3092/6 ideal for Pin driver and PowerFET driver applications.

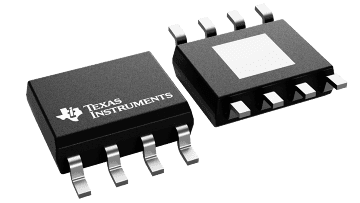

The THS3092 is offered in an 8-pin SOIC (D), and the 8-pin SOIC (DDA) packages with PowerPAD™. The THS3096 is offered in the 8-pin SOIC (D) and the 14-pin TSSOP (PWP) packages with PowerPAD.

  • Low Distortion
    • 66 dBc HD2 at 10 MHz, RL = 100
    • 76 dBc HD3 at 10 MHz, RL = 100
  • Low Noise
    • 13 pA/Hz Noninverting Current Noise
    • 13 pA/Hz Inverting Current Noise
    • 2 nV/Hz Voltage Noise
  • High Slew Rate: 5700 V/µs (G = 5, VO = 20 VPP)
  • Wide Bandwidth: 160 MHz (G = 5, RL = 100 )
  • High Output Current Drive: ±250 mA
  • Wide Supply Range: ±5 V to ±15 V
  • Power-Down Feature: (THS3096 Only)
  • APPLICATIONS
    • High-Voltage Arbitrary Waveform
    • Power FET Driver
    • Pin Driver
    • VDSL Line Driver

PowerPAD is a trademark of Texas Instruments.

ArchitectureCurrent FB
Number of channels2
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)10
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)30
GBW (typ) (MHz)145
BW at Acl (MHz)145
Acl, min spec gain (V/V)1
Slew rate (typ) (V/µs)5700
Vn at flatband (typ) (nV√Hz)2
Vn at 1 kHz (typ) (nV√Hz)2
Iq per channel (typ) (mA)9.5
Vos (offset voltage at 25°C) (max) (mV)3
Rail-to-railNo
RatingCatalog
Operating temperature range (°C)-40 to 85
CMRR (typ) (dB)78
Input bias current (max) (pA)15000000
Offset drift (typ) (µV/°C)10
Iout (typ) (mA)250
2nd harmonic (dBc)66
3rd harmonic (dBc)76
Frequency of harmonic distortion measurement (MHz)10
HSOIC (DDA)829.4 mm² 4.9 x 6
SOIC (D)829.4 mm² 4.9 x 6
