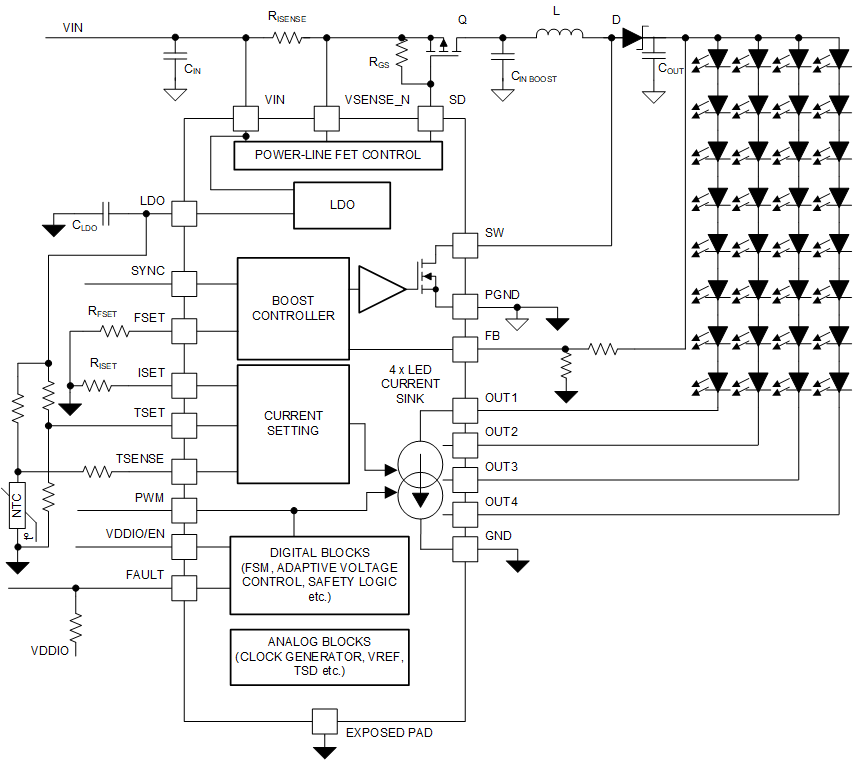

The LP8867-Q1, LP8869-Q1 is an automotive highly-integrated, low-EMI, easy-to-use LED driver with DC-DC converter. The DC-DC converter supports both boost and SEPIC mode operation. The device has four or three high-precision current sinks that can be combined for higher current capability.
The DC-DC converter has adaptive output voltage control based on the LED forward voltages. This feature minimizes the power consumption by adjusting the voltage to the lowest sufficient level in all conditions. For EMI reduction DC-DC supports spread spectrum for switching frequency and an external synchronization with dedicated pin. A wide-range adjustable frequency allows the LP886x-Q1 to avoid disturbance for sensitive frequency band.
The input voltage range for the LP886x-Q1 is from 4.5 V to 40 V to support automotive start-stop and load dump condition. The LP886x-Q1 integrates extensive fault detection features.
| Number of channels | 4 |
| Topology | Boost with Current Sink, SEPIC |
| Rating | Automotive |
| TI functional safety category | Functional Safety-Capable |
| Operating temperature range (°C) | -40 to 125 |
| Vin (min) (V) | 4.5 |
| Vin (max) (V) | 40 |
| Vout (min) (V) | 6 |
| Vout (max) (V) | 45 |
| Iout (max) (A) | 0.48 |
| Iq (typ) (mA) | 4.5 |
| Switching frequency (max) (kHz) | 2200 |
| Features | Adjustable Switch Frequency, Boost Sync, Current Derating, Enable/Shutdown, Fault Detection, Global dimming, Integrated Switch, LED Open Detection, LED Shorted Detection, Load Disconnect During Shutdown, Power-Line FET, Soft Start, Spread Spectrum, Synchronization Pin, Thermal shutdown |

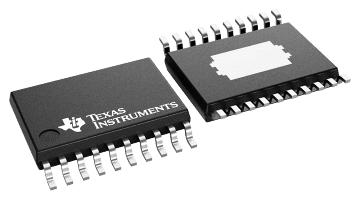

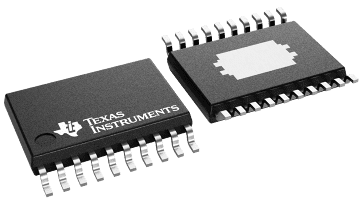

| HTSSOP (PWP) | 20 | 41.6 mm² 6.5 x 6.4 |
