The CSD95482RWJ NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
| VDS (V) | 20 |
| Power loss (W) | 1.6 |
| Ploss current (A) | 20 |
| Configuration | PowerStage |
| ID - continuous drain current at TA=25°C (A) | 40 |
| Operating temperature range (°C) | -55 to 150 |
| Features | Analog temperature output, Diode emulation mode with FCCM, Industry common footprint, Integrated current sense, Ultra-low inductance package |
| Rating | Catalog |

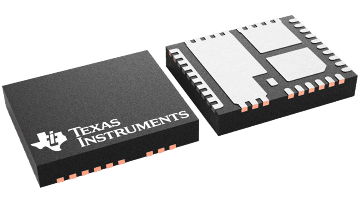

| VQFN-CLIP (RWJ) | 41 | 30 mm² 6 x 5 |
