TPS53626

正在供货

适用于 VR13 CPU VCORE 和 DDR 存储器的两相 D-CAP+™ 降压控制器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

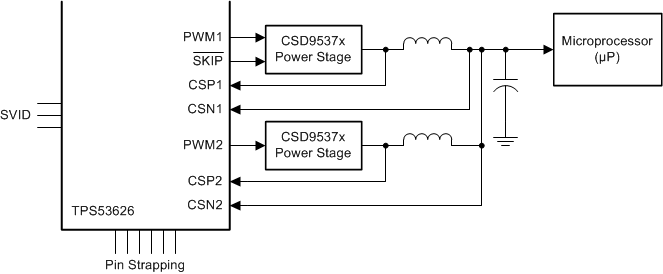

The TPS53626 device is a driverless, VR13 SVID compliant, synchronous buck controller.Advanced control features such as D-CAP+ architecture with overlapping pulse support undershoot reduction (USR) and overshoot reduction (OSR) provide fasttransient response, lowest output capacitance and high efficiency. The device also supportssingle-phase operation in CCM or DCM for light-load efficiency boost. The device integrates a fullset of VR13 I/O features including VR_READY (PGOOD), ALERT and VR_HOT. The SVID interface address allows programming from 00h to 07h.Adjustable control of V_OUT slew rate can be programmed as high as20mV/uS.

Paired with the TI NexFET Power Stage, this totalsolution delivers exceptionally high speed and low switching loss. The TPS53626 also offers four default modes that configure VCCIO and VMCP settings with one single external resistor to savecomponent count and board space.

The TPS53626 device package is a space saving, thermally enhanced 32-pin VQFN packagethat operates from –40°C to 105°C.

For all available packages, see the orderable addendum at the end of the document.

Intel VR13 Serial VID (SVID) Compliant
1- or 2-Phase Operation
Default Configuration Mode for VR13 VCCIO and VMCP
Supports Both Droop and Non-Droop Applications
8-Bit DAC with 5-mV Step
Output Range: 0.25 V to 1.52 V
Optimized Efficiency at Light and Heavy Loads
8 Independent Levels of Overshoot Reduction (OSR) and Undershoot Reduction (USR)
Driverless Configuration for Efficient High-Frequency Switching
Supports Discrete, Power Block, Power Stage or DrMOS MOSFET Implementations
Accurate, Adjustable Voltage Positioning
300-kHz to 1-MHz Frequency Selections
Patented AutoBalance Phase Balancing
Programmable ON-Pulse Extension for Load Transient Boost
Programmable Auto DCM and CCM Operation
Selectable 8-level Current Limit
4.5-V to 28-V Conversion Voltage Range
Small, 4 mm × 4 mm, 32-Pin, VQFN PowerPad Package

Vin (min) (V)	4.5
Vin (max) (V)	28
Vout (min) (V)	0.25
Vout (max) (V)	1.52
Iout (max) (A)	70
Iq (typ) (mA)	3.5
Switching frequency (min) (kHz)	300
Switching frequency (max) (kHz)	1000
Features	Adjustable current limit, Dynamic Voltage Scaling, Enable, Light Load Efficiency, Output discharge, Phase Interleaving, Power good, Pre-Bias Start-Up, Remote Sense, SVID, Synchronous Rectification
Operating temperature range (°C)	-40 to 105
Regulated outputs (#)	1
Number of phases	2
Rating	Catalog
Control mode	D-CAP+
Type	Controller

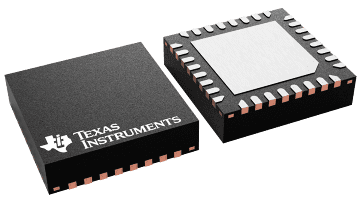

VQFN (RSM)

16 mm² 4 x 4
