The SN1050x family is a set of rail-to-rail output single,dual, and triple low-voltage, high-output swing, low-distortion high-speed amplifiers ideal for driving data converters, video switching, or low distortion applications. This family of voltage-feedback amplifiers can operate from a single 15-V power supply down to a single 3-V power supply while consuming only 14 mA of quiescent current per channel. In addition, the family offers excellent ac performance with 100-MHz bandwidth, 900-V/µs slew rate and harmonic distortion (THD) at -78 dBc at 5 MHz.
| Architecture | Voltage FB |
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 2.7 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 16 |
| GBW (typ) (MHz) | 120 |
| BW at Acl (MHz) | 170 |
| Acl, min spec gain (V/V) | 1 |
| Slew rate (typ) (V/µs) | 750 |
| Vn at flatband (typ) (nV√Hz) | 13 |
| Vn at 1 kHz (typ) (nV√Hz) | 13 |
| Iq per channel (typ) (mA) | 12 |
| Vos (offset voltage at 25°C) (max) (mV) | 25 |
| Rail-to-rail | Out |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| CMRR (typ) (dB) | 96 |
| Input bias current (max) (pA) | 3000000 |
| Offset drift (typ) (µV/°C) | 0 |
| Iout (typ) (mA) | 100 |
| 2nd harmonic (dBc) | 78 |
| 3rd harmonic (dBc) | 85 |
| Frequency of harmonic distortion measurement (MHz) | 5 |

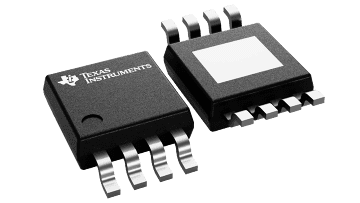

| HVSSOP (DGN) | 8 | 14.7 mm² 3 x 4.9 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
