LMH6624

正在供货

单/双路超低噪声宽带运算放大器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

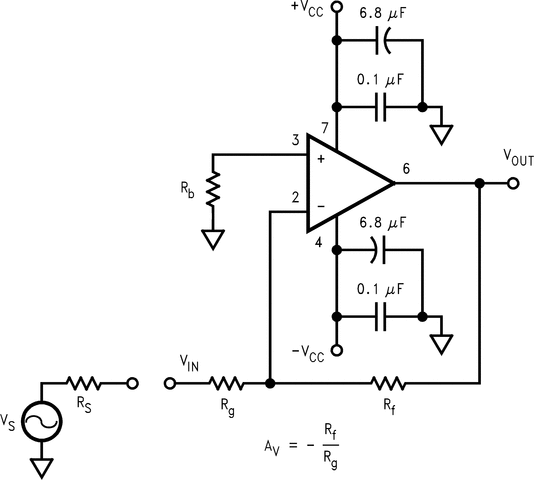

The LMH6624 and LMH6626 devices offer wide bandwidth (1.5 GHz for single, 1.3 GHz for dual) with very low input noise (0.92 nV/√Hz, 2.3 pA/√Hz) and ultra-low dc errors (100 µV V_OS, ±0.1 µV/°C drift) providing very precise operational amplifiers with wide dynamic range. This enables the user to achieve closed-loop gains of greater than 10, in both inverting and non-inverting configurations.

The LMH6624 (single) and LMH6626 (dual) traditional voltage feedback topology provide the following benefits: balanced inputs, low offset voltage and offset current, very low offset drift, 81dB open loop gain, 95dB common mode rejection ratio, and 88dB power supply rejection ratio.

The LMH6624 and LMH6626 devices operate from ±2.5 V to ±6 V in dual supply mode and from 5 V to 12 V in single supply configuration.

LMH6624 is offered in SOT-23-5 and SOIC-8 packages. The LMH6626 is offered in SOIC-8 and VSSOP-8 packages.

V_S = ±6 V, T_A = 25°C, A_V = 20 (Typical Values
Unless Specified)
Gain Bandwidth (LMH6624) 1.5 GHz

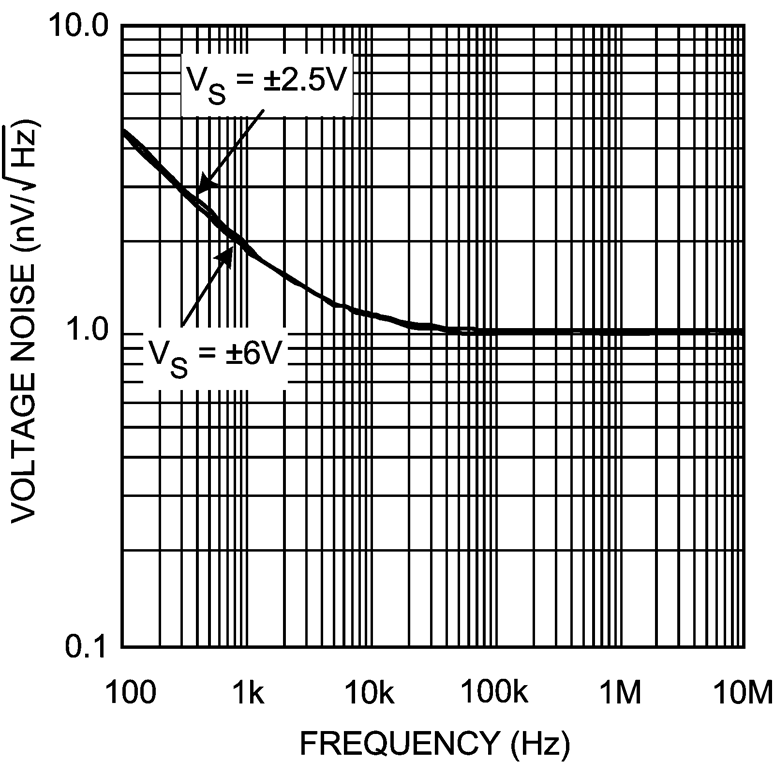

Input Voltage Noise 0.92 nV/√Hz
Input Offset Voltage (limit over temp) 700 µV
Slew Rate 350 V/µs
Slew Rate (A_V = 10) 400 V/µs
HD2 at f = 10 MHz, R_L = 100 Ω −63 dBc
HD3 at f = 10 MHz, R_L = 100 Ω −80 dBc
Supply Voltage Range (Dual Supply) 2.5 V to 6 V
Supply Voltage Range (Single Supply) 5 V to 12 V
Improved Replacement for the CLC425 (LMH6624)
Stable for Closed Loop |A_V| ≥ 10

Architecture	Voltage FB
Number of channels	1
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	5
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	12
GBW (typ) (MHz)	1800
BW at Acl (MHz)	150
Acl, min spec gain (V/V)	10
Slew rate (typ) (V/µs)	400
Vn at flatband (typ) (nV√Hz)	0.92
Vn at 1 kHz (typ) (nV√Hz)	0.92
Iq per channel (typ) (mA)	12
Vos (offset voltage at 25°C) (max) (mV)	0.5
Rail-to-rail	No
Features	Decompensated
Rating	Catalog
Operating temperature range (°C)	-40 to 125
CMRR (typ) (dB)	95
Input bias current (max) (pA)	20000000
Offset drift (typ) (µV/°C)	0.25
Iout (typ) (mA)	100
2nd harmonic (dBc)	63
3rd harmonic (dBc)	80
Frequency of harmonic distortion measurement (MHz)	10

SOIC (D)	8	29.4 mm² 4.9 x 6
SOT-23 (DBV)	5	8.12 mm² 2.9 x 2.8
