• Two Highly Efficient Programmable Buck Regulators
  • Integrated FETs with Low R_DSON
  • Bucks Operate with Their Phases Shifted to Reduce
    the Input Current Ripple and Capacitor Size
  • Programmable Output Voltage via the SPI interface
  • Overvoltage and Undervoltage Lockout
  • Automatic Internal Soft Start with Power-on Reset
  • PFM Mode for Low-Load, High-Efficiency Operation
• Low-Dropout LDO 3.0V, 250 mA
• SPI-Programmable Interrupt Comparator (2.0V to 4.0V) to
  Monitor VIN

Key Specifications

• LM10502 - Programmable Buck Regulators:
  • Buck 1: 1.1V to 3.6V; 1A
  • Buck 2: 0.7V to 1.335V; 1A
• ±3% Feedback Voltage Accuracy
• Up to 95% Efficient Buck Regulators
• 2MHz Switching Frequency for Smaller Inductor Size

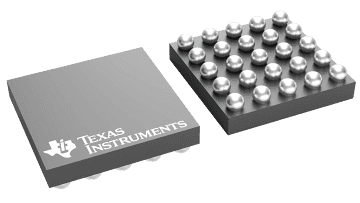

• 2.5 7times; 2.5 mm, 0.5 mm Pitch DSBGA Package
