TPS22965 是一款单通道负载开关,可提供可配置的上升时间来尽量减小浪涌电流。 此器件包括一个 N 通道金属氧化物半导体场效应晶体管 (MOSFET),可在 0.8V 至 5.7V 的输入电压范围内运行并可支持 6A 的最大持续电流。此开关由一个开/关输入 (ON) 控制,此输入能够直接连接低电压控制信号。 在 TPS22965 中,为了实现开关关闭时的快速输出放电,增加了一个 225Ω 的片上负载电阻器。

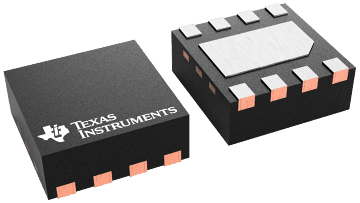

TPS22965 采用小型,节省空间的 2.00mm x 2.00mm 8 引脚 SON 封装 (DSG),且带有集成散热焊盘,支持较高功耗。 器件在自然通风环境下的额定运行温度范围为 -40°C 至 85°C。
要了解所有可用封装,请见数据表末尾的可订购产品附录。All trademarks are the property of their respective owners.
| Number of channels | 1 |
| Vin (min) (V) | 0.8 |
| Vin (max) (V) | 5.7 |
| Imax (A) | 6 |
| Ron (typ) (mΩ) | 16 |
| Shutdown current (ISD) (typ) (µA) | 0.2, 1.37 |
| Quiescent current (Iq) (typ) (µA) | 50 |
| Soft start | Adjustable Rise Time |
| Current limit type | None |
| Features | Quick output discharge |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 105 |
| FET | Internal |
| Device type | Load switches |
| Function | Inrush current control |
| WSON (DSG) | 8 | 4 mm² 2 x 2 |
