LMV934-N

LMV934-N

正在供货

四路、5.5V、1.5MHz、65mA 输出电流、RRIO 运算放大器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

The LMV93x-N family (LMV931-N single, LMV932-N dual and LMV934-N quad) are low-voltage, low-power operational amplifiers. The LMV93x-N family operates from 1.8-V to 5.5-V supply voltages and have rail-to-rail input and output. The input common-mode voltage extends 200 mV beyond the supplies which enables user enhanced functionality beyond the supply voltage range. The output can swing rail-to-rail unloaded and within 105 mV from the rail with 600-Ω load at 1.8-V supply. The LMV93x-N devices are optimized to work at 1.8 V, which make them ideal for portable two-cell, battery-powered systems and single-cell Li-Ion systems.

LMV93x-N devices exhibit an excellent speed-power ratio, achieving 1.4-MHz gain bandwidth product at 1.8-V supply voltage with very low supply current. The LMV93x-N devices can drive a 600-Ω load and up to 1000-pF capacitive load with minimal ringing. These devices also have a high DC gain of 101 dB, making them suitable for low-frequency applications.

The single LMV93x-N is offered in space-saving 5-pin SC70 and SOT-23 packages. The dual LMV932-N are in 8-pin VSSOP and SOIC packages and the quad LMV934-N are in 14-pin TSSOP and SOIC packages. These small packages are ideal solutions for area constrained PC boards and portable electronics such as mobile phones and tablets.

  • Typical 1.8-V Supply Values; Unless Otherwise Noted
  • Specified at 1.8 V, 2.7 V and 5 V
  • Output Swing
    • With 600-Ω Load 80 mV from Rail
    • With 2-kΩ Load 30 mV from Rail
  • VCM 200 mV Beyond Rails

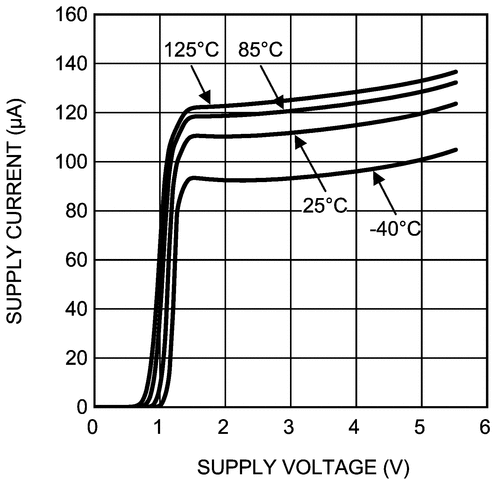

  • Supply Current (per Channel) 100 µA
  • Gain Bandwidth Product 1.4 MHz
  • Maximum VOS 4 mV
  • Ultra Tiny Packages
  • Temperature Range −40°C to +125°C
  • Create a Custom Design Using the LMV93x-N With the WEBENCH® Power Designer
Number of channels4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)1.8
Rail-to-railIn, Out
GBW (typ) (MHz)1.5
Slew rate (typ) (V/µs)0.42
Vos (offset voltage at 25°C) (max) (mV)5.5
Iq per channel (typ) (mA)0.116
Vn at 1 kHz (typ) (nV√Hz)50
RatingCatalog
Operating temperature range (°C)-40 to 125
Offset drift (typ) (µV/°C)5.5
Input bias current (max) (pA)35000
CMRR (typ) (dB)86
Iout (typ) (A)0.065
ArchitectureBipolar
Input common mode headroom (to negative supply) (typ) (V)-0.3
Input common mode headroom (to positive supply) (typ) (V)0.35
Output swing headroom (to negative supply) (typ) (V)0.037
Output swing headroom (to positive supply) (typ) (V)-0.033
SOIC (D)1451.9 mm² 8.65 x 6
TSSOP (PW)1432 mm² 5 x 6.4
