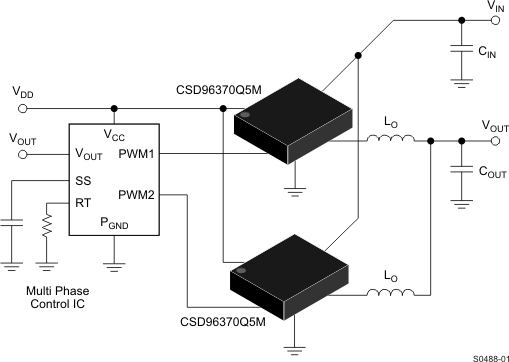

The CSD96370Q5M NexFET Power Stage is an optimized design for use in a high power, high density Synchronous Buck converter. This product integrates an enhanced gate driver IC and Power Block Technology to complete the power stage switching function. This combination produces a high current, high efficiency, high speed switching device and delivers an excellent thermal solution in a small 5-mm × 6-mm outline package due to its large ground based thermal pad. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
| VDS (V) | 25 |
| Power loss (W) | 2.6 |
| Ploss current (A) | 25 |
| Configuration | PowerStage |
| ID - continuous drain current at TA=25°C (A) | 40 |
| Operating temperature range (°C) | -55 to 150 |
| Features | Ultra-low inductance package |
| Rating | Catalog |

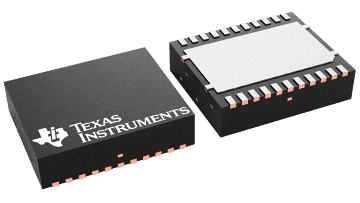

| LSON-CLIP (DQP) | 22 | 30 mm² 6 x 5 |
