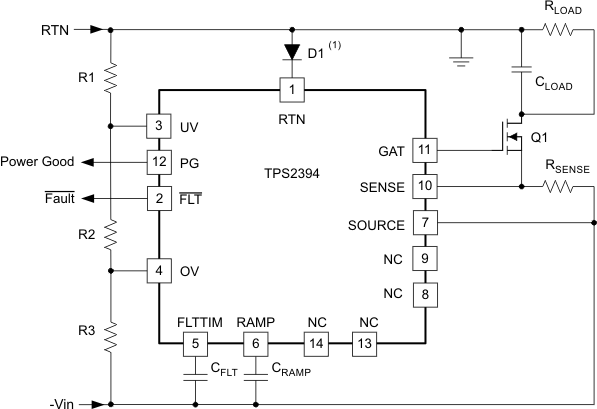

The TPS2394 is a hot swap power manager which can provide inrush limit, over current protection, short circuit protection. The TPS2394 operates with supply voltages from −12 V to −80 V, and withstands input transient to −100 V.
The TPS2394 uses a power FET to provide load current slew rate control and peak current limiting that is programmed by one resistor and one capacitor. The device also provides a power good output to enable down-stream power converters and a fault output to indicate load problems.
| FET | External |
| Vin (min) (V) | -80 |
| Vin (max) (V) | -12 |
| Vabsmax_cont (V) | -100 |
| Overcurrent response | current limiting |
| Fault response | Auto-retry |
| Soft start | Adjustable |
| Overvoltage response | Cut-off |
| Features | Fault output, Power good signal |
| Rating | Catalog |
| Device type | eFuses and hot swap controllers |
| Operating temperature range (°C) | -40 to 85 |
| Function | Adjustable current limit, Inrush current control, Overvoltage protection, Power good signal, Short circuit protection |
| TSSOP (PW) | 14 | 32 mm² 5 x 6.4 |
