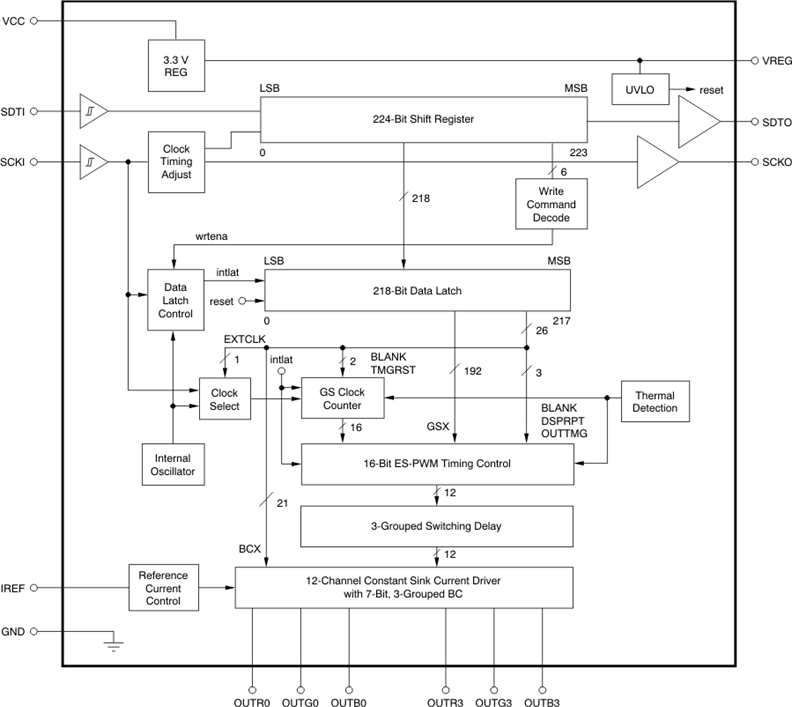

• 12 Constant-Current Sink Output Channels
• Current Capability: 60 mA Per Channel
• Grayscale (GS) Control With Enhanced Spectrum
  PWM:
  16-Bit (65536 Steps)
• Global Brightness Control (BC):
  7-Bit (128 Steps) for Each Color Group
• Power-Supply Voltage Range:
  • Internal Linear Regulator: 6 V to 17 V
  • Direct Power Supply: 3 V to 5.5 V
• LED Supply Voltage: Up to 17 V
• Constant-Current Accuracy:
  • Channel-to-Channel = ±1% (Typical)
  • Device-to-Device = ±1% (Typical)
• Data Transfer Rate: 20 MHz
• Linear Voltage Regulator: 3.3 V
• Auto Display Repeat Function
• Display Timing Reset Function
• Internal and External Selectable GS Clock
• Thermal Shutdown (TSD) With Auto Restart
• Unlimited Device Cascading
• Operating Temperature Range: –40°C to +85°C
• APPLICATIONS
  • RGB LED Cluster Lamp Displays
